Monture photo Mini Star Adventurer (blanche)
Monture photo Mini Star Adventurer (blanche)

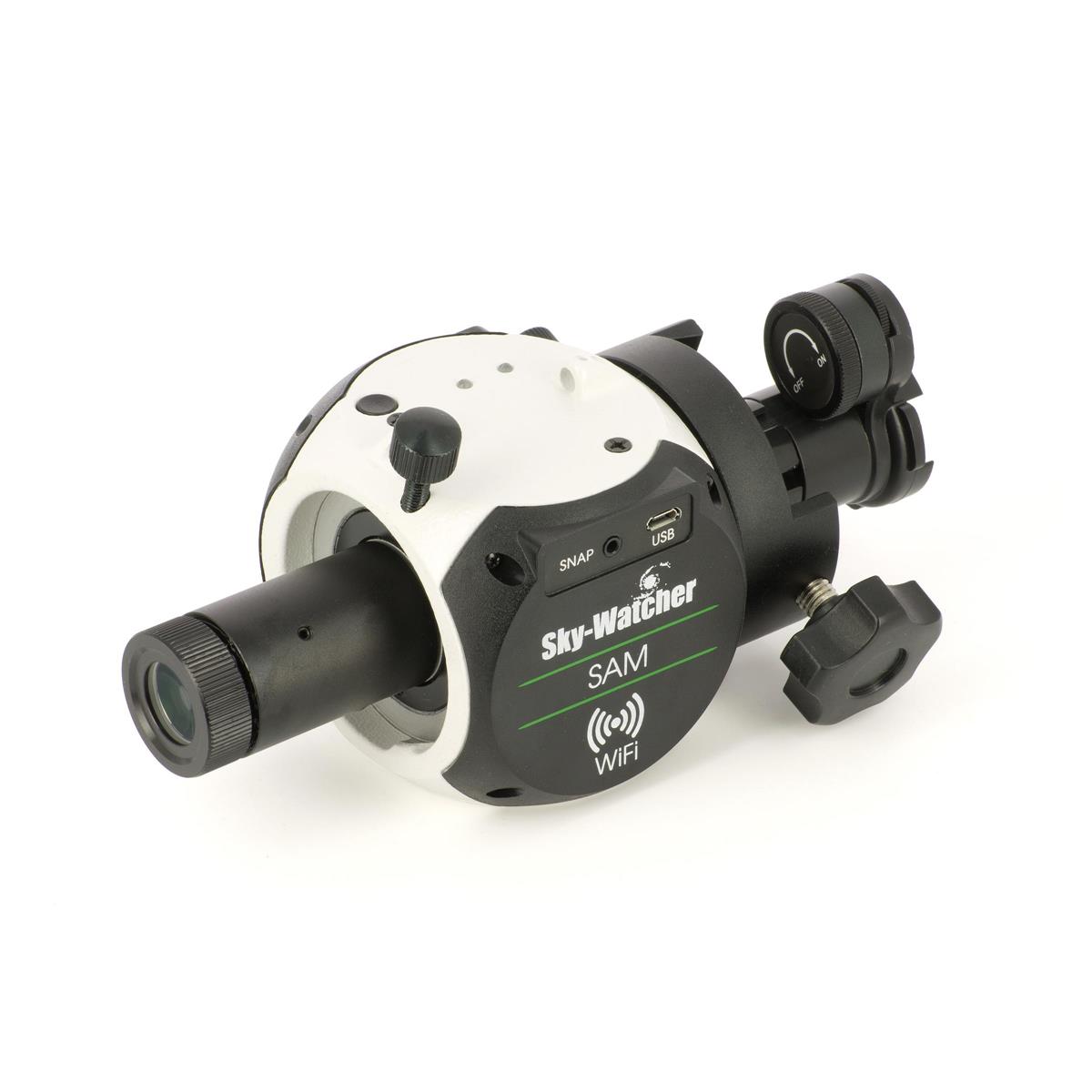

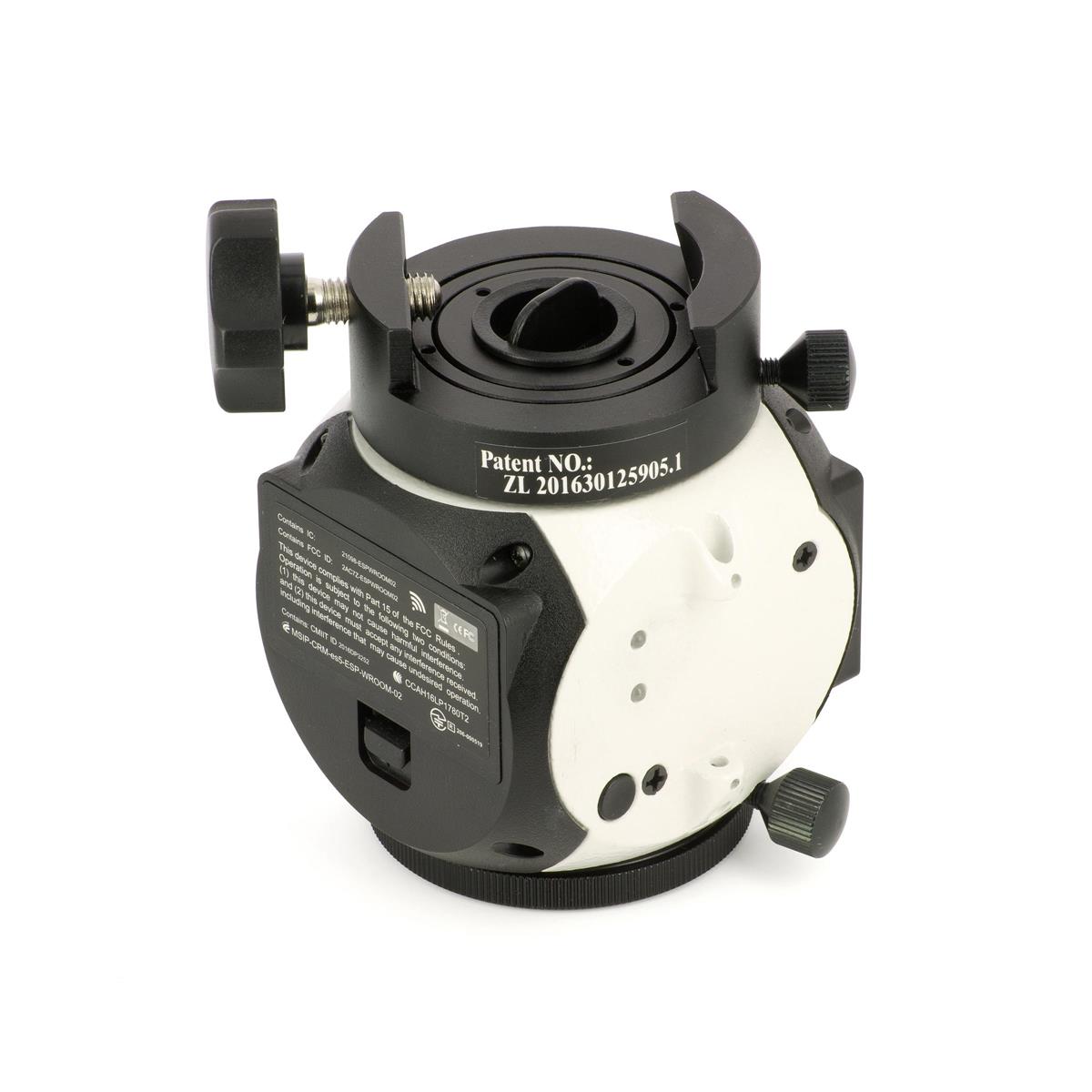

The Sky-Watcher Star Adventurer Mini mount is a modular German equatorial mount designed for nomadic astrophotographers. It is more compact, lighter, and smaller than its big sister, the Star Adventurer, and is aimed at users of digital cameras (DSLR) or 60mm refractors.
Features
- Modular German equatorial mount
- Servo motor continuous current
- Load capacity: 3kg (everything included, with counterweights too)
- Aluminum gear wheel, diameter 36mm, 72 teeth
- Worm gear: 11mm diameter in brass
- Tracking type: sidereal tracking, half-sidereal tracking, lunar (average lunar speed), solar
- Usable in both hemispheres, North and South
- Time-lapse: a complete turn in 2h, in 4h, or in 12h
- Integrated polar finder scope with included lighting
- Remote connection: integrated Wifi
- Ports: mini-USB, SNAP (DSLR trigger)
- Power supply: battery case included (2xAA not included - autonomy up to 24h at 20°), or external DC 5V (mini USB)
Command and Control
The mount can be commanded and controlled via the free Console SAM app, available on smartphone (iOS/Android). The app allows you to configure and control all parameters and features of the mount.
Accessories
- 3/8" congress screw plate
- Lighting for the polar finder
- User manual in French
- Optional trigger cords for DSLR users
Configuration Examples
The mount can be configured with different trigger cords for digital cameras. It is important to note that no trigger cord is included in the various packages, and it must be purchased separately.
Dimensions and Weight
- Dimensions: 76mm x 70mm x 103mm
- Weight: mount only: 650g
In summary, the Sky-Watcher Star Adventurer Mini mount is an ideal solution for nomadic astrophotographers looking for a compact and lightweight equatorial mount with advanced tracking and control features.
