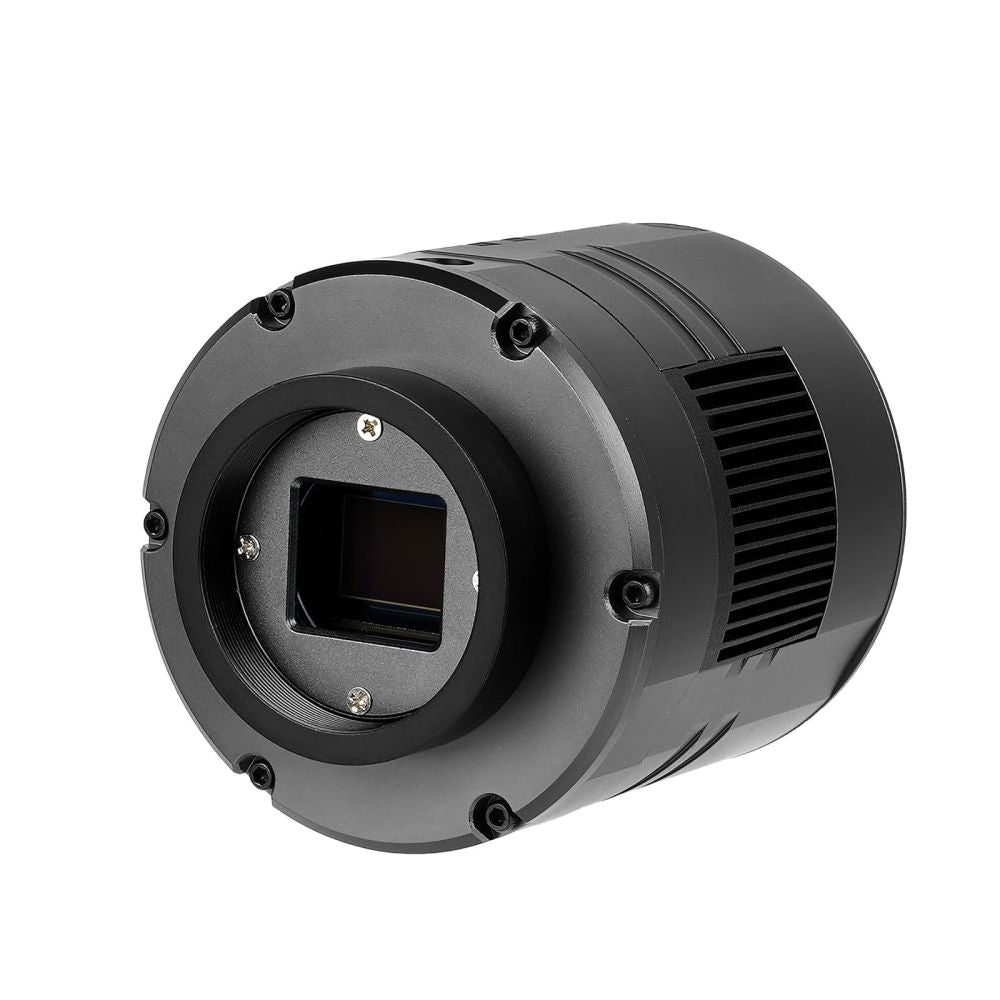

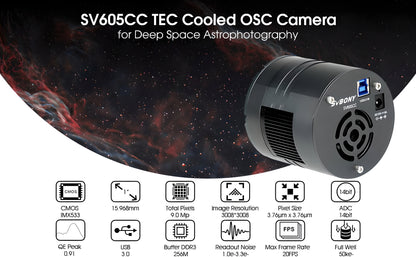

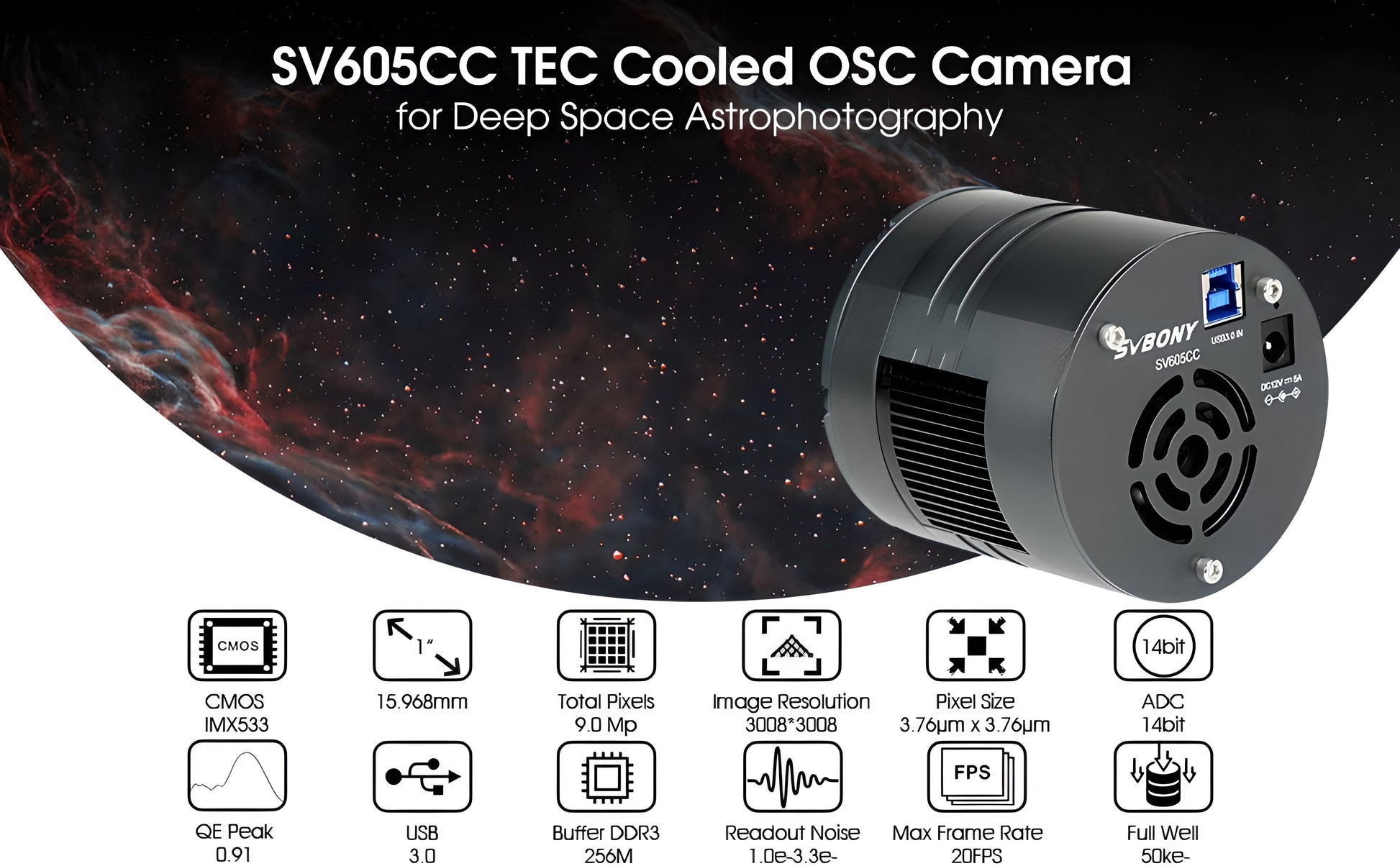

Discover the universe with the color astronomical camera SV605CC from SVBONY, designed for deep sky imaging. This 1-inch camera with an IMX533 CMOS sensor offers exceptional resolution and high quantum efficiency, ideal for observations in light-polluted environments.

Features:

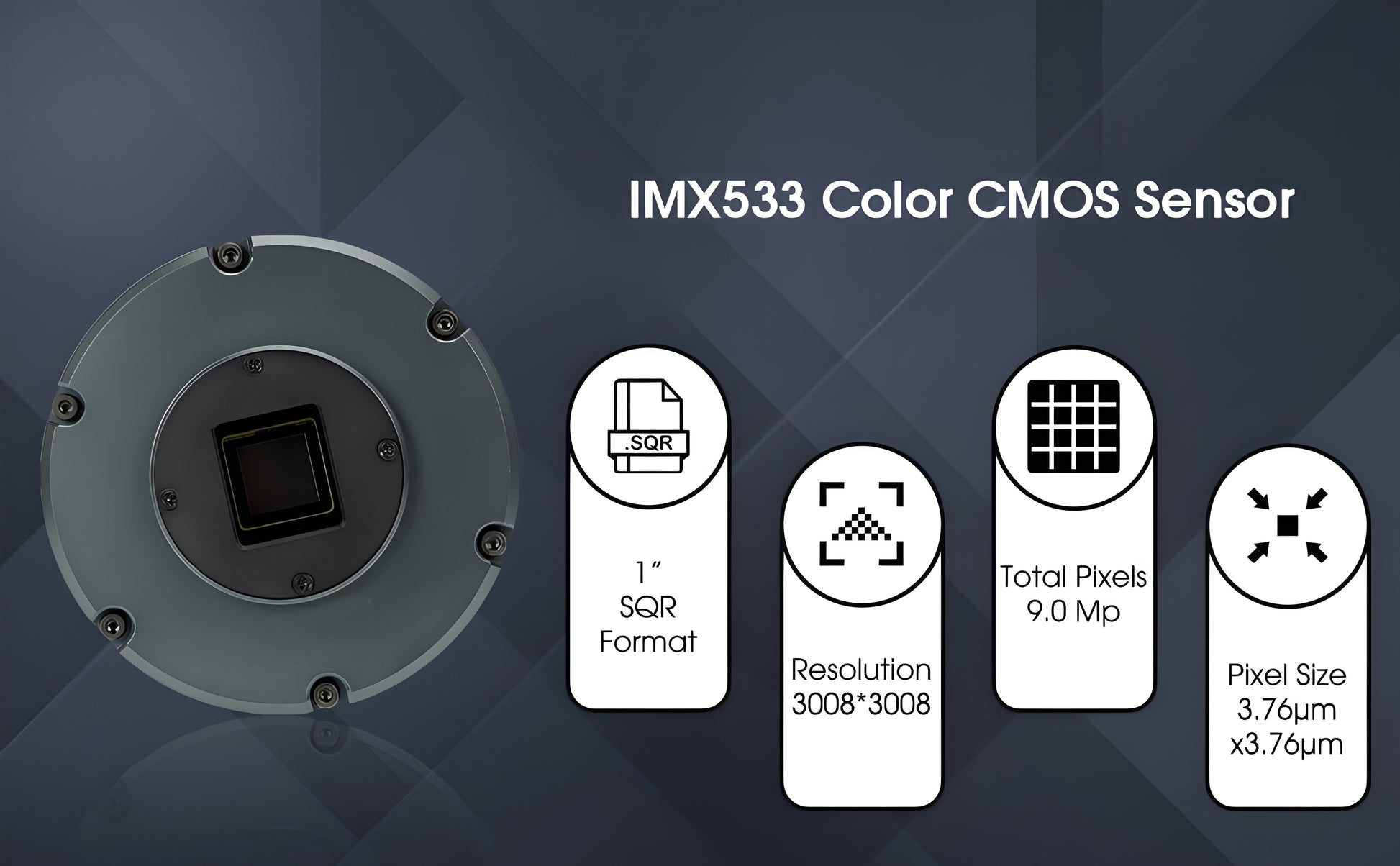

• Sensor: Color IMX533 CMOS
• Image resolution: 3008 x 3008
• Total pixels: 9.0 megapixels
• Pixel size: 3.76 μm x 3.76 μm

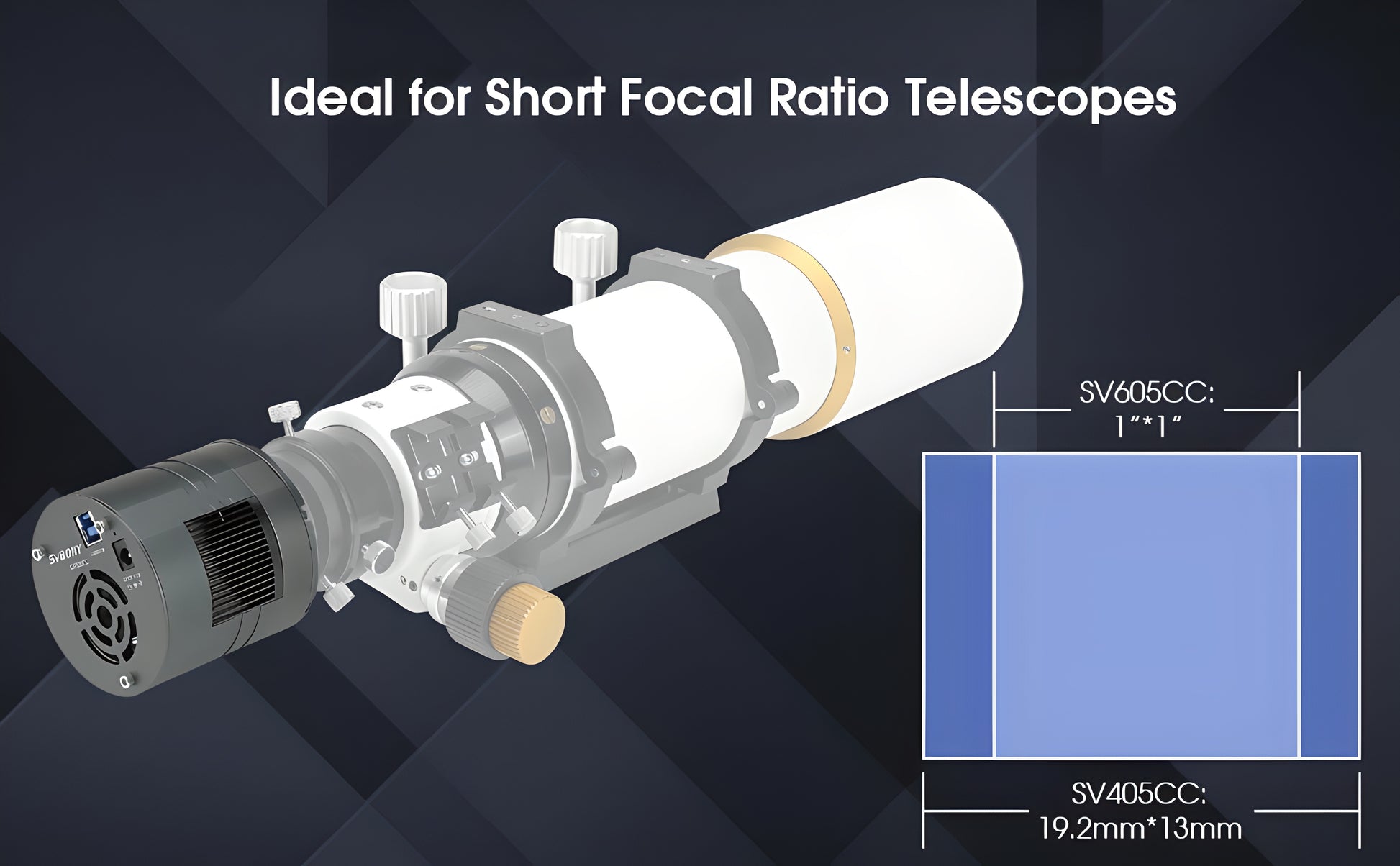

• Sensor size: 1 inch
• Diagonal: 15.968 mm
• Maximum frame rate: 20 FPS
• Shutter type: Rolling Shutter

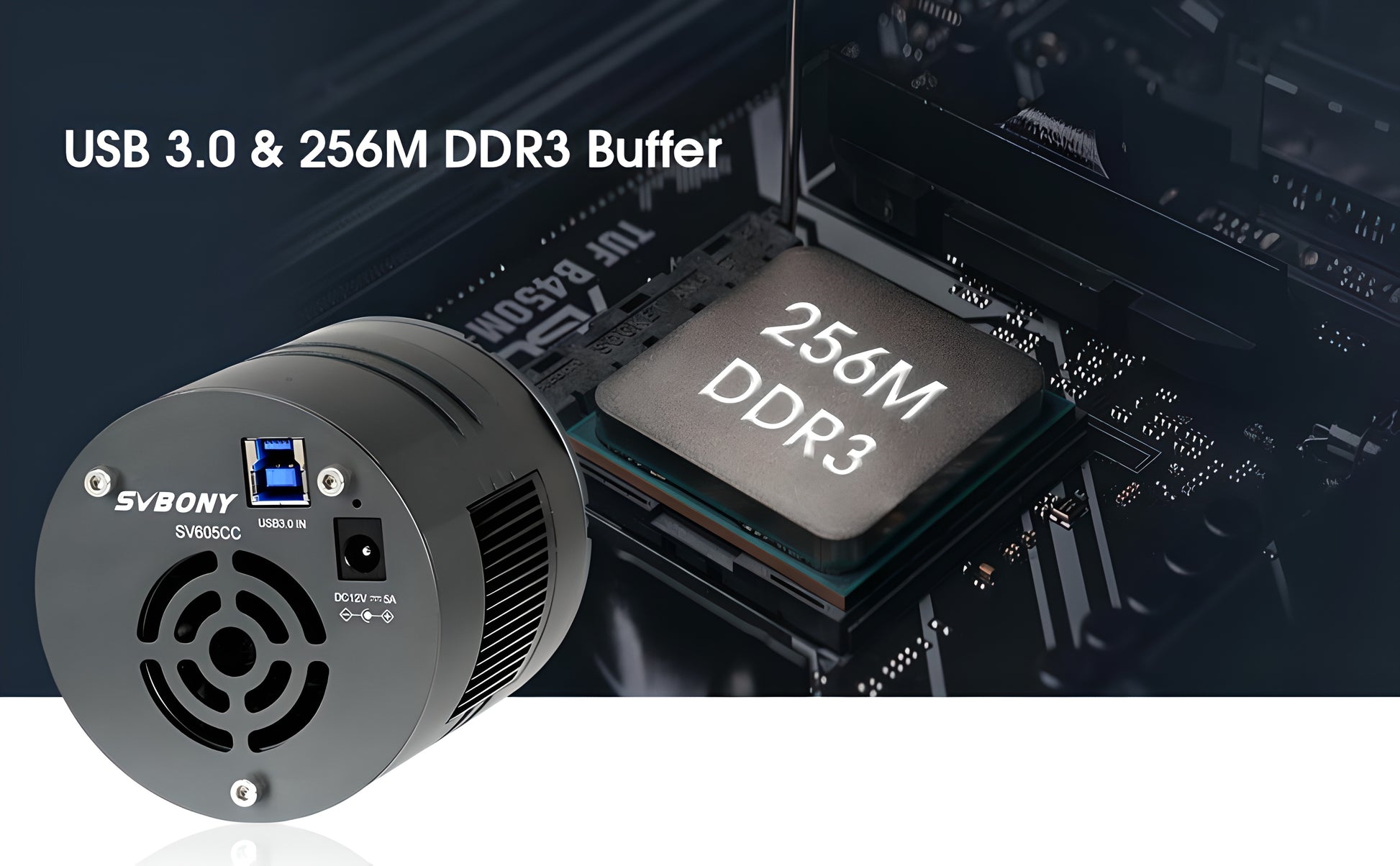

• USB interface: Type-B USB 3.0
• Cache memory: DDR3 256M
• Exposure time: 0.05 ms to 2000 s

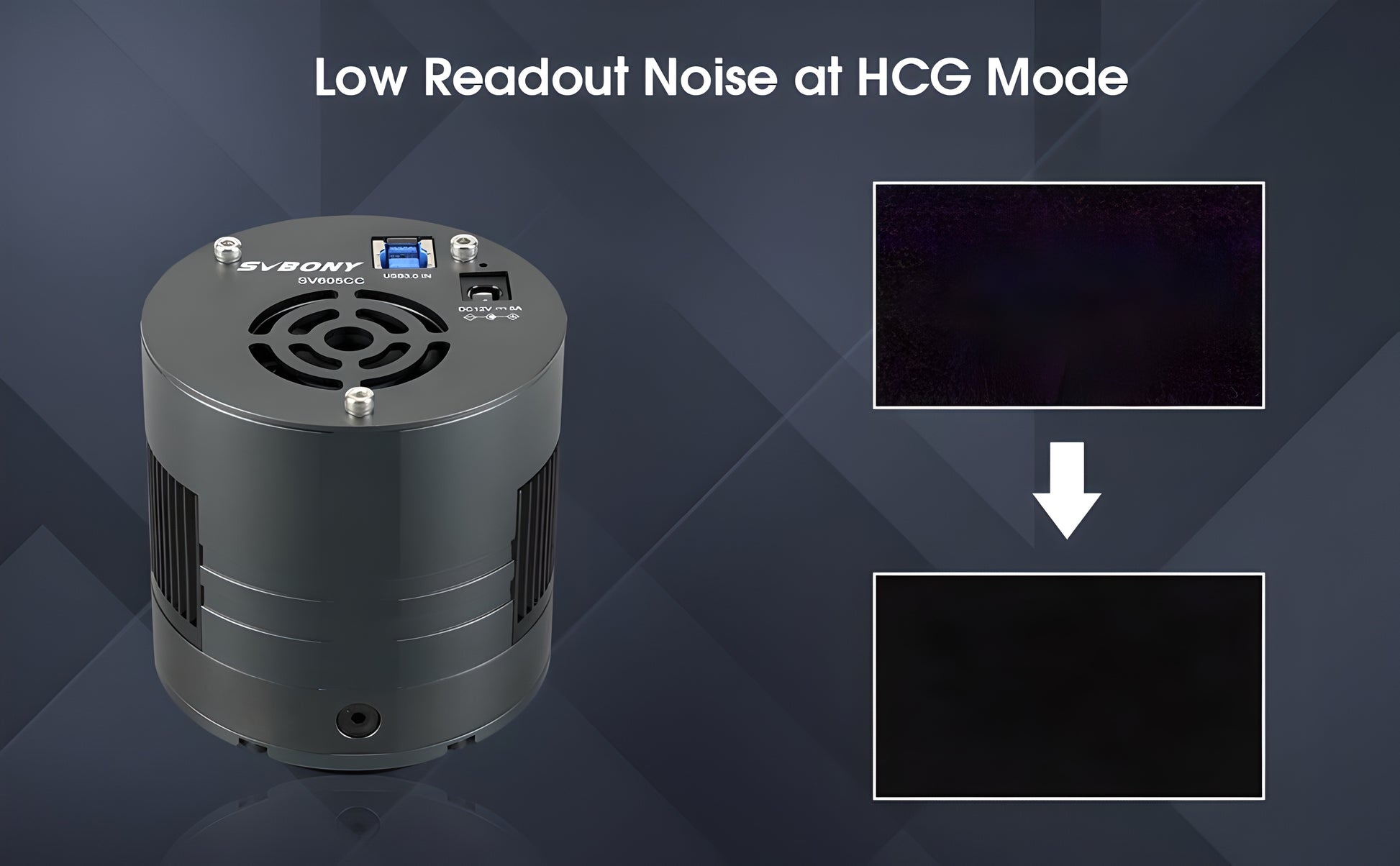

• Read noise: 1.0e-3.3e-

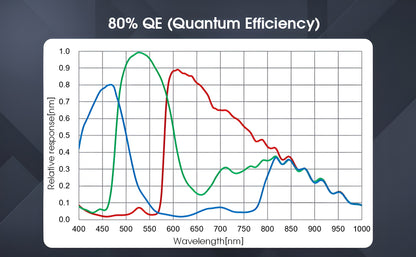

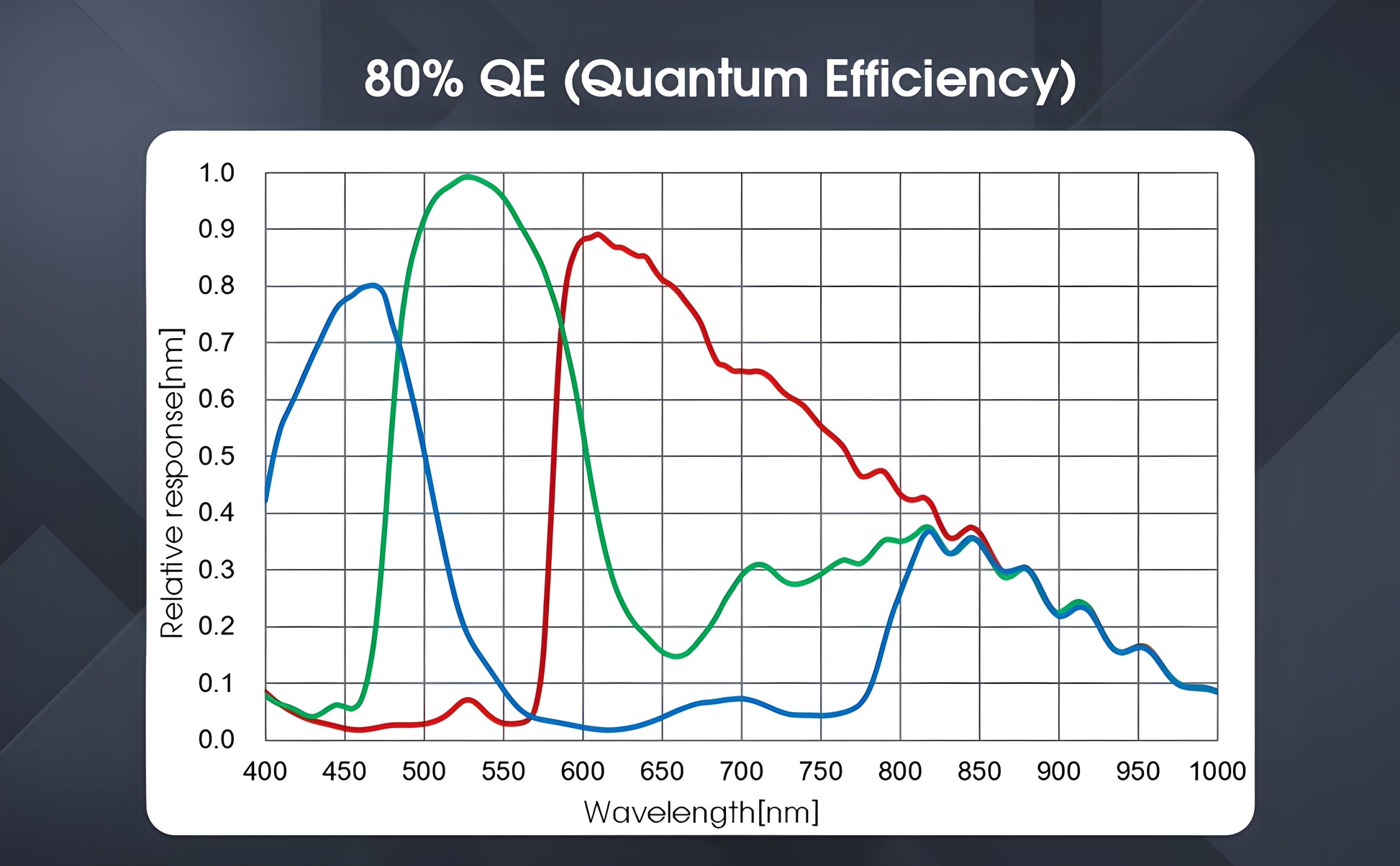

• Maximum quantum efficiency: 91%
• Full charge: 50 ke-
• ADC: 14 bits
• Temperature display: Display on software

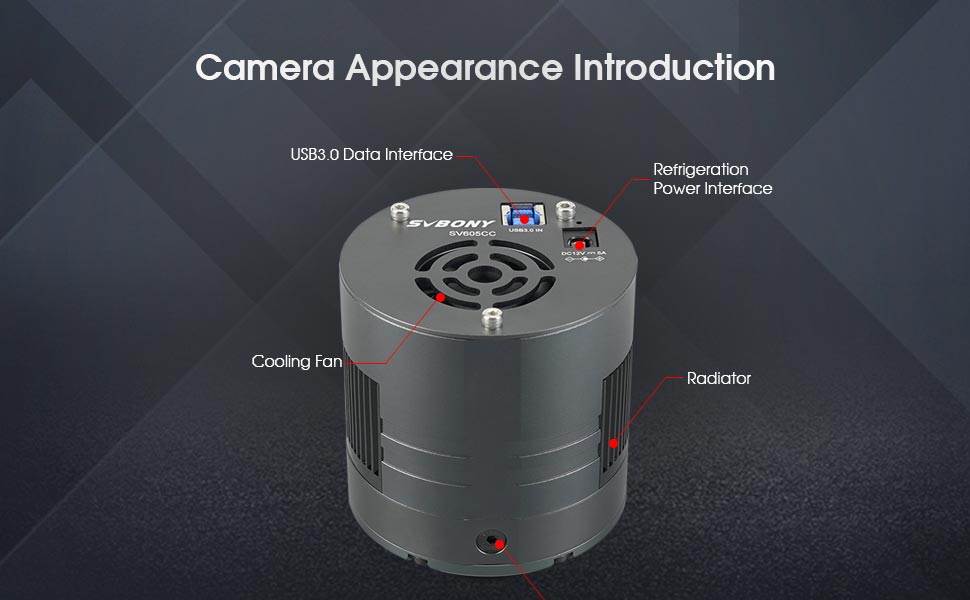

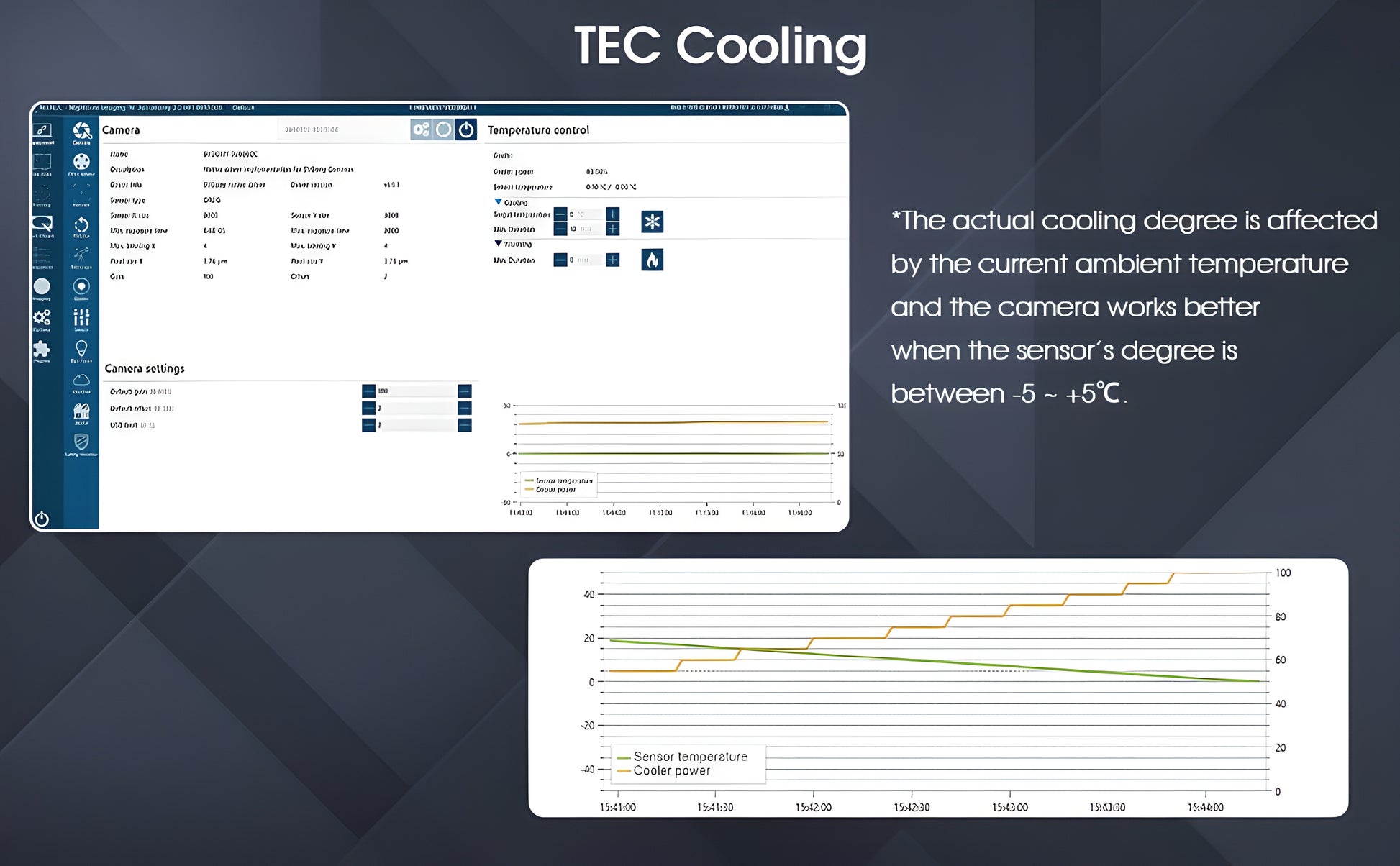

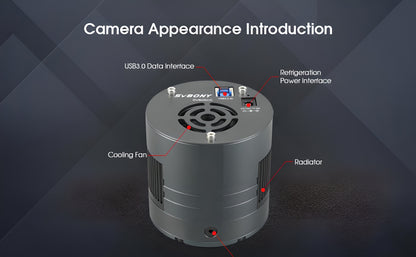

• Cooling system: Two-stage TEC cooling
• Digital noise reduction: Supported

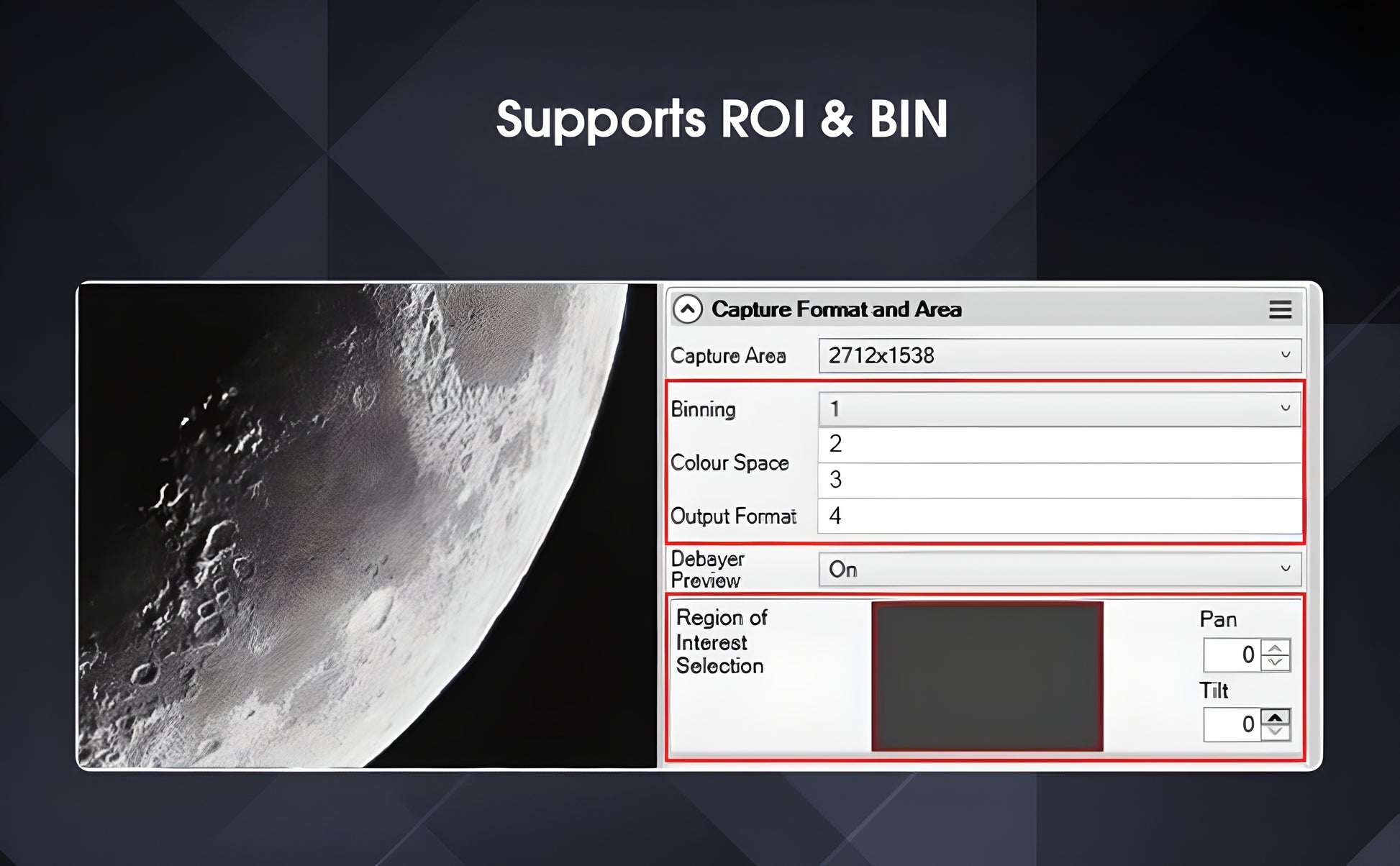

• ROI: Supported
• Pixel binning: BIN1, BIN2, BIN3, BIN4

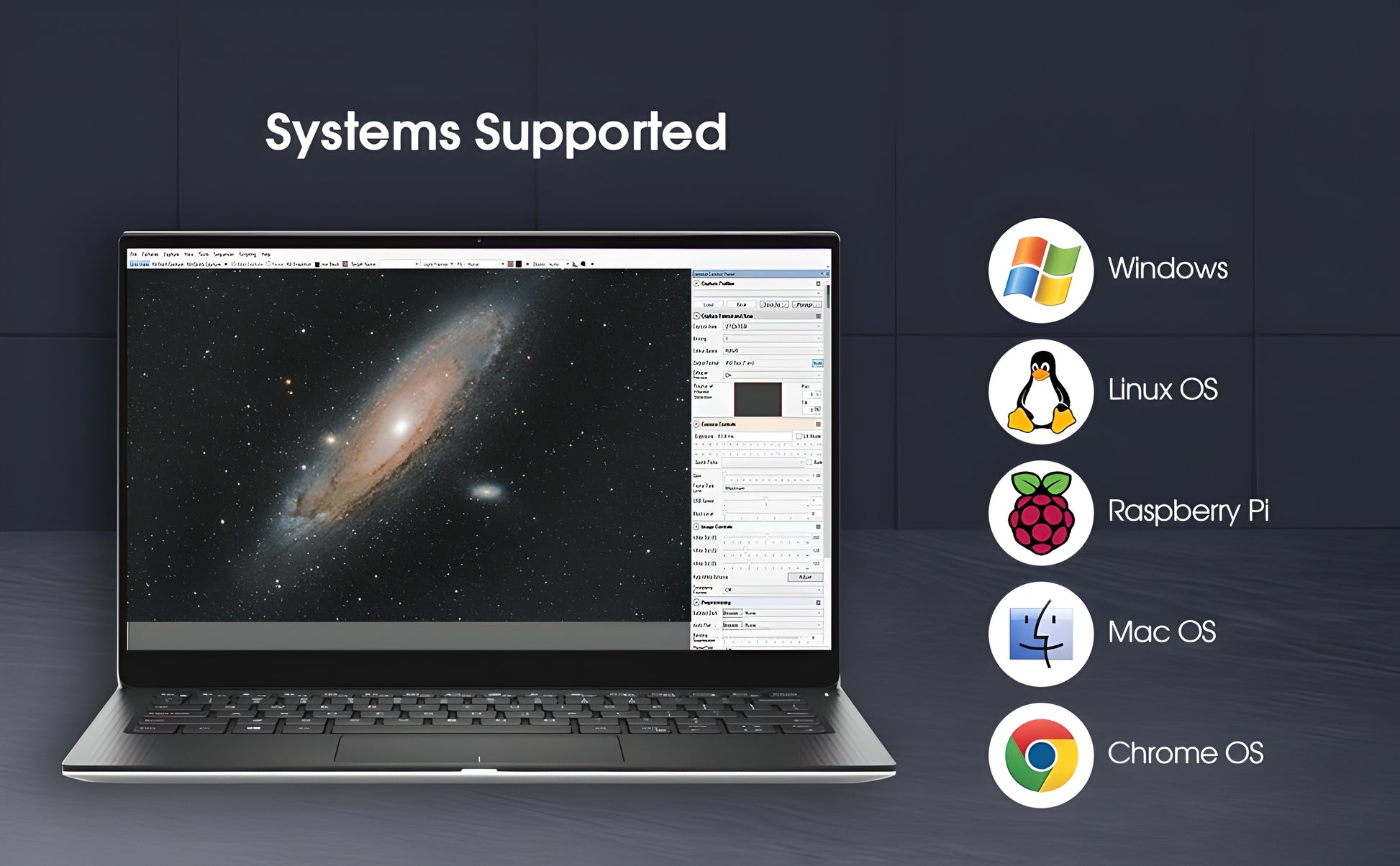

• Operating systems: Windows, Linux, Mac OS, Raspberry Pi, Chrome OS

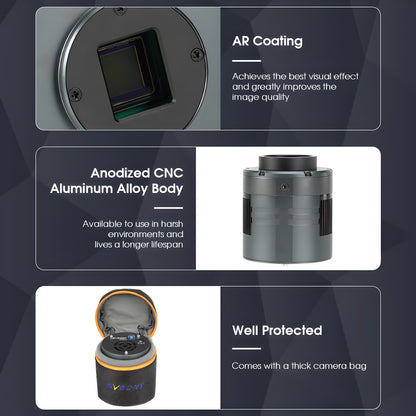

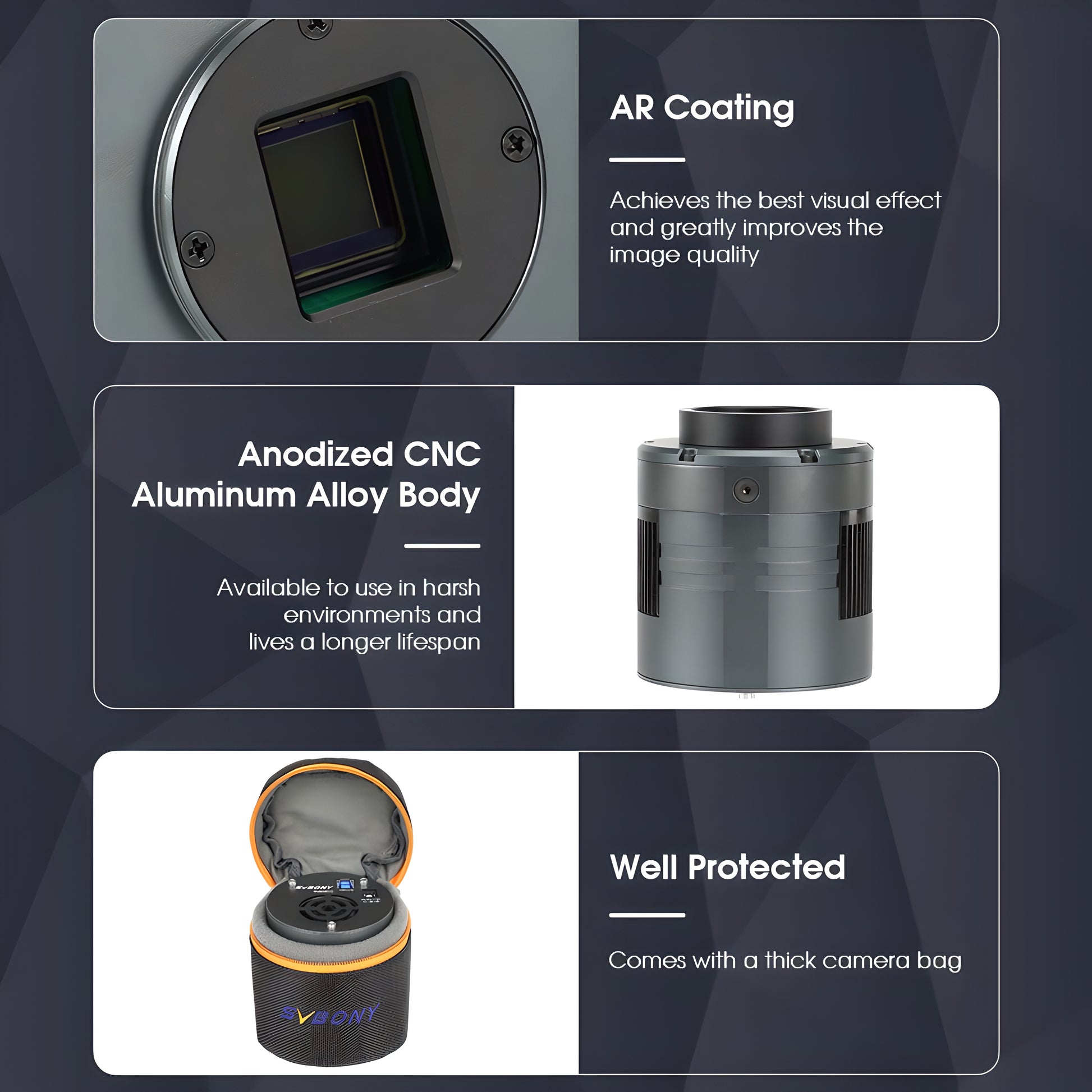

• Protection window: Optical glass with AR coating

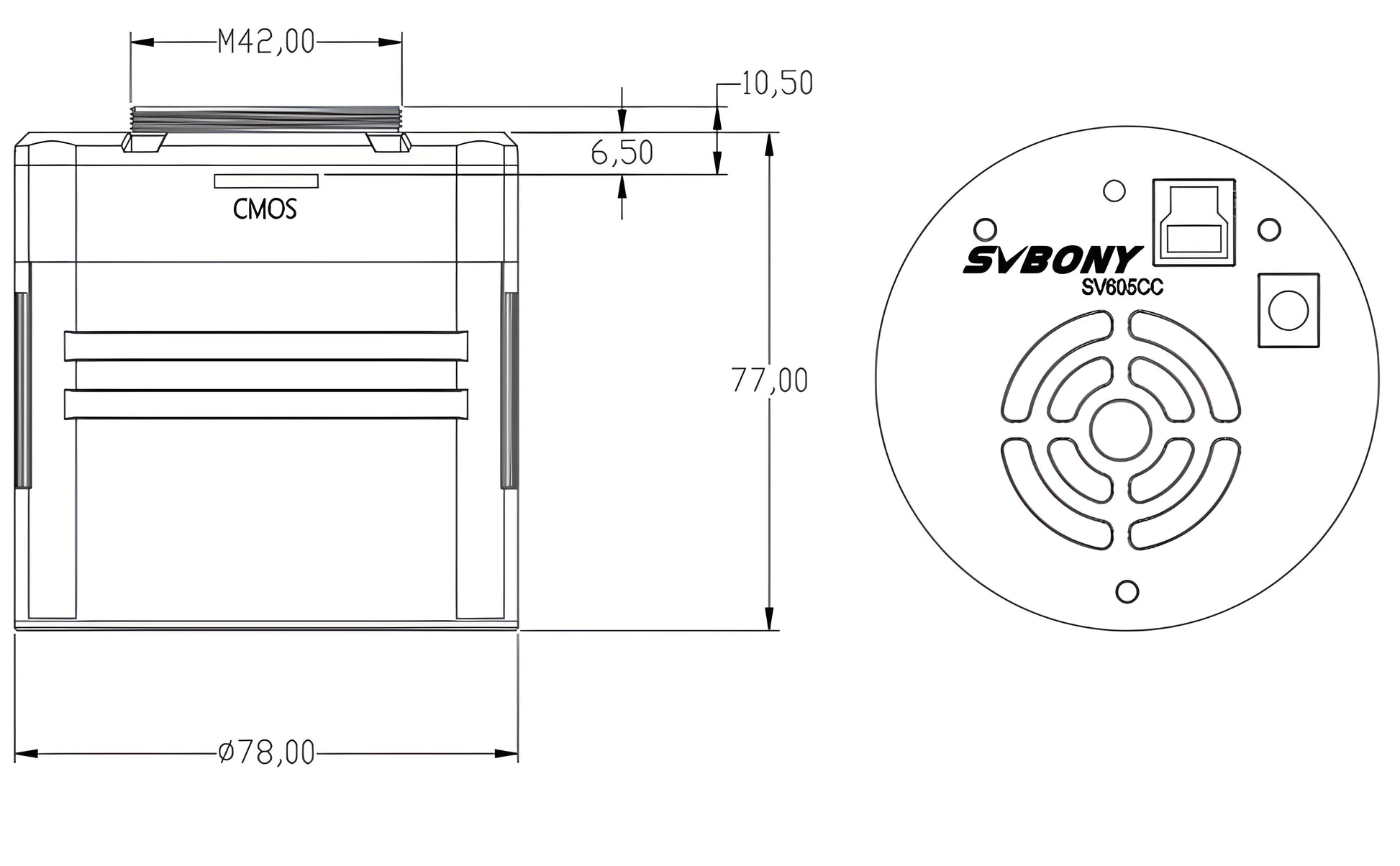

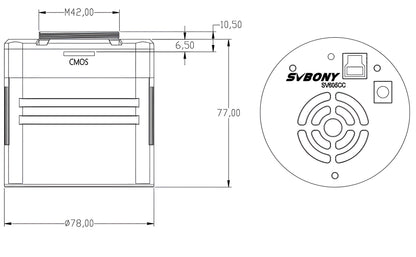

• Camera interface specifications: 2", 1.25", M42x0.75
• Back focus distance: 6.5 mm / 17.5 mm
• Operating current: < 300 mA
• Standby current: < 30 mA

Advantages:

• High resolution and optimized pixels for detailed imaging
• Two-stage TEC cooling for significant sensor noise reduction
• Compatible with various operating systems and astrophotography software

Compatibility:

• Works with Windows, Linux, Mac OS, Raspberry Pi, and Chrome OS systems
• Compatible with AstroDMx Capture, Sharpcap, N.I.N.A, TheSkyX, and others via ASCOM software
