Caméra Planétaire SV205C

The SVBONY SV205C is a high-quality electronic camera for astrophotography, ideal for beginners. Equipped with a Sony IMX415 CMOS sensor and a USB3.0 Type-B port, this camera is designed to capture clear and detailed images of the Moon, Jupiter, Saturn, double stars, as well as some bright objects in deep space. It is compatible with the standard UVC protocol, which means it does not require a specific SVBONY driver and is ready to use.

Main Features:

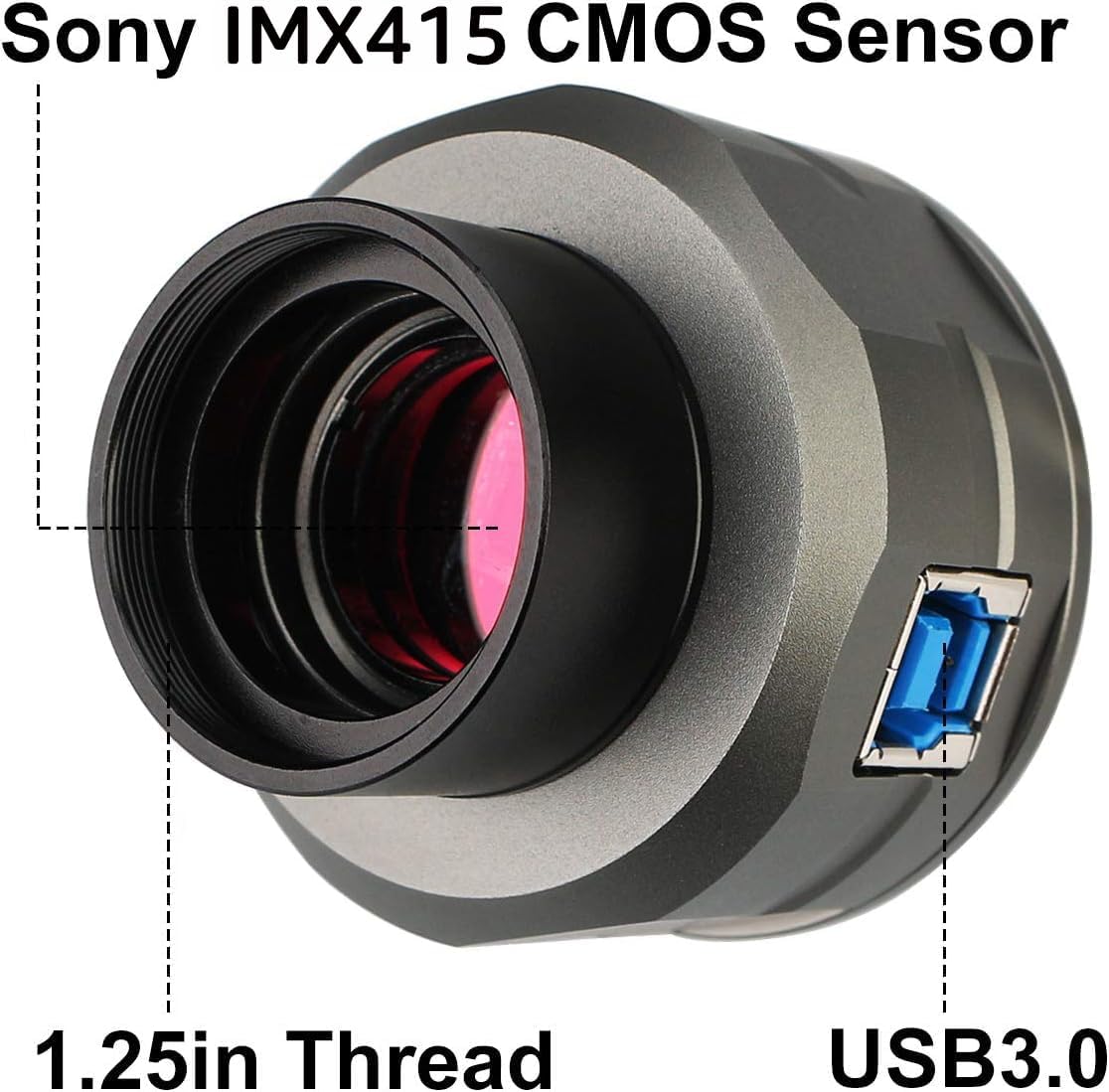

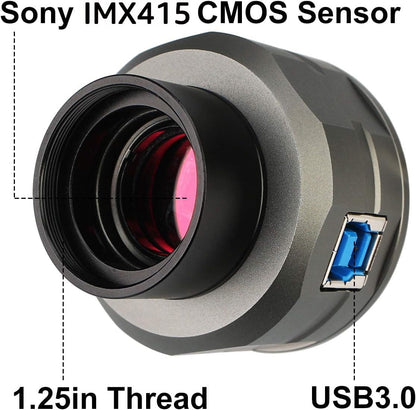

CMOS IMX415 Sensor:

• Uses a Sony IMX415 CMOS sensor with 7.05 megapixels, offering a resolution of 3264 x 2160.
• Low light compensation technology, significantly enhancing image clarity in low-light conditions.

Real-Time Video:

• Records real-time videos and transfers them to a laptop or PC.
• In MJPG video format, the camera can record videos at a rate of up to 30 frames per second at a resolution of 1920x1080.
• Uncompressed YUV video format also available.

Machined Aluminum Adapter:

• The 1.25" aluminum adapter allows for a direct threaded connection to almost any telescope.

Removable IR-CUT Filter:

• Comes with a built-in UV IR-CUT filter, offering a high transmittance of over 96% in the visible light range (400-700 nm).
• The filter can be removed for imaging in the infrared or ultraviolet bands.

Multi-System Compatibility:

• Compatible with Windows, Linux, Android, and Raspberry Pi OS, offering great flexibility of use.

Technical Specifications:

• Model: SV205C
• Sensor: 1/2.8" Color CMOS Sony IMX415
• Pixel Size: 1.45µm x 1.45µm
• Image Resolution: 7.05 megapixels (3264 x 2160)
• USB Type: USB 3.0
• Shutter: Rolling electronic shutter
• Exposure Time: 15 ms to 1000 ms
• Gain: 0-120
• Max Frame Rate (YUY2): 30 FPS in MJPG 1920x1080, 15 FPS in YUY2 3264x2160
• ADC: 10 bits
• Filter: IR-CUT Filter
• Interface Protocol: Standard UVC protocol
• Cable Length: 1.8 m
• Weight: 100 g
• Supported Operating Systems: Windows, Linux, Android, Raspberry Pi OS
• Power Consumption: 230 mA at 5 V
• Operating Humidity: 30%-80%
• Storage Humidity: 20%-90%
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -10°C to +60°C

Recommended Applications:

• Planetary Imaging: Ideal for capturing images of the Moon, Jupiter, Saturn, and other planets.
• Lunar and Solar Imaging: Capture sharp images of the lunar surface and, with a secure solar filter, of the sun.
• Double Star and Compact Object Imaging: Excellent for imaging double stars and other bright compact objects.
• Imaging of Certain Deep Space Objects: Suitable for observing certain bright deep space objects.

The SVBONY SV205C camera is an excellent choice for beginner astrophotographers, offering solid performance for a variety of celestial imaging applications.
