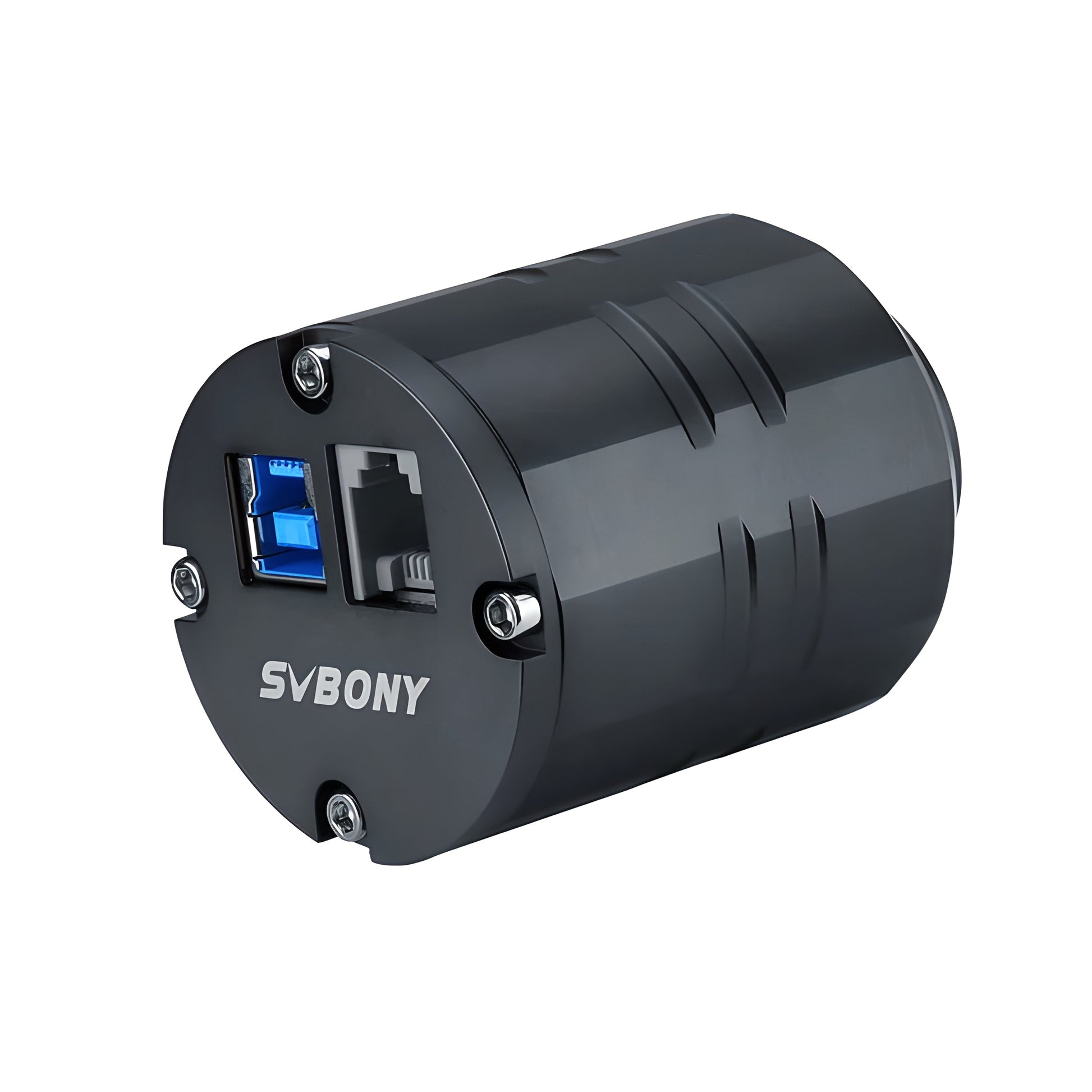

SVBONY SV305 Pro Color Camera for Guiding or Planetary with IR Filter

The SV305 Pro from SVBONY is an advanced color astronomy camera, specially designed for planetary, lunar imaging, and some bright deep-space objects. Equipped with an extremely sensitive Sony IMX290 CMOS sensor, this camera delivers exceptional performance for astrophotography enthusiasts.

Main Features:

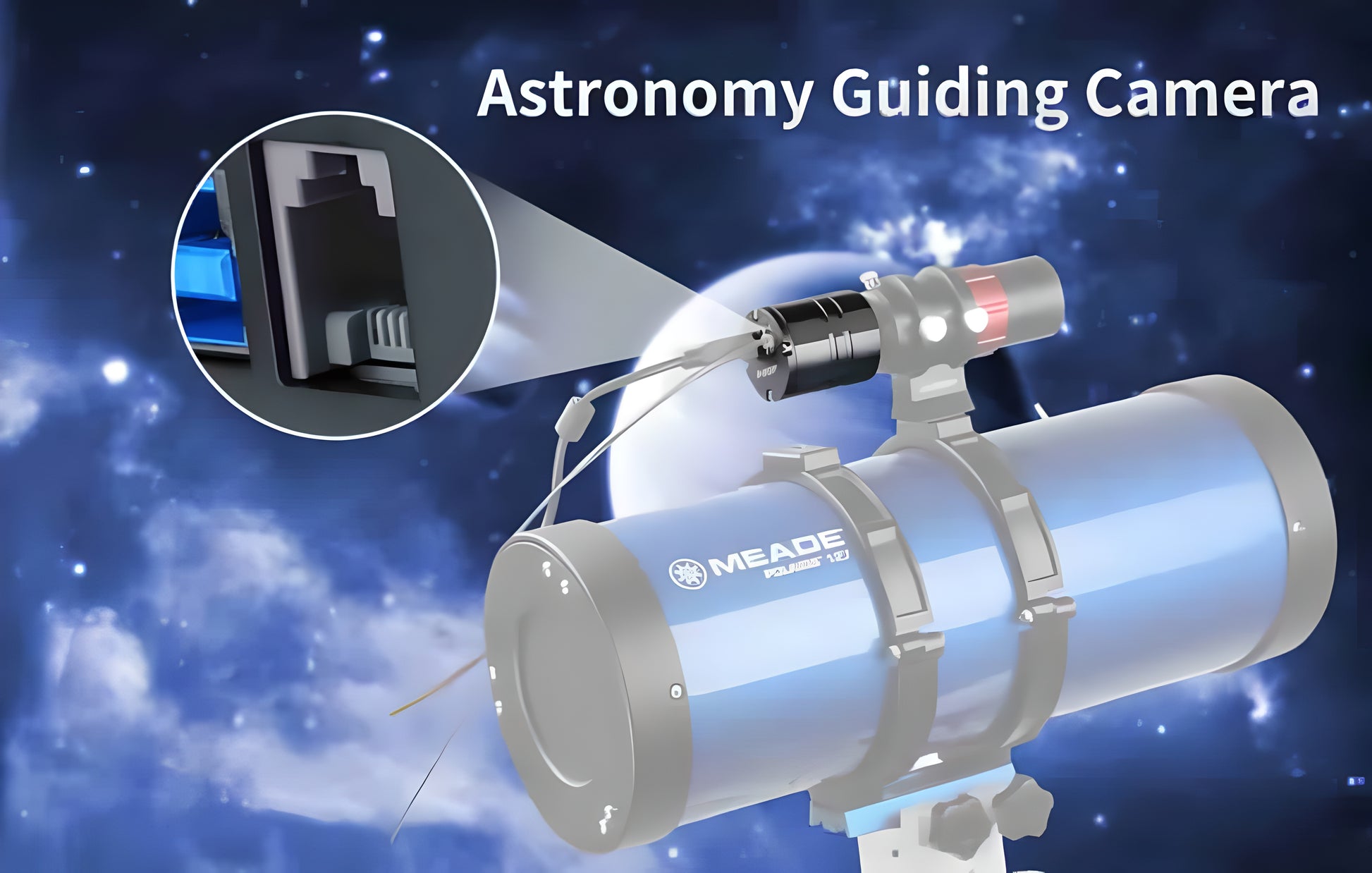

ST4 Guiding:

• Equipped with an ST4 guiding port, the SV305 Pro is compatible with the PHD2 guiding software and the ASCOM platform, providing precise guiding for astrophotography.

IMX290 CMOS Sensor:

• Uses a back-illuminated Sony IMX290 CMOS sensor with a high QE of 80% and a very low read noise of 0.75e, allowing for clear and detailed images.

High Speed and Long Exposure:

• Captures up to 120 frames per second at a resolution of 1920 x 1080.
• Allows long exposures of up to 30 minutes, ideal for imaging some bright deep-space objects.

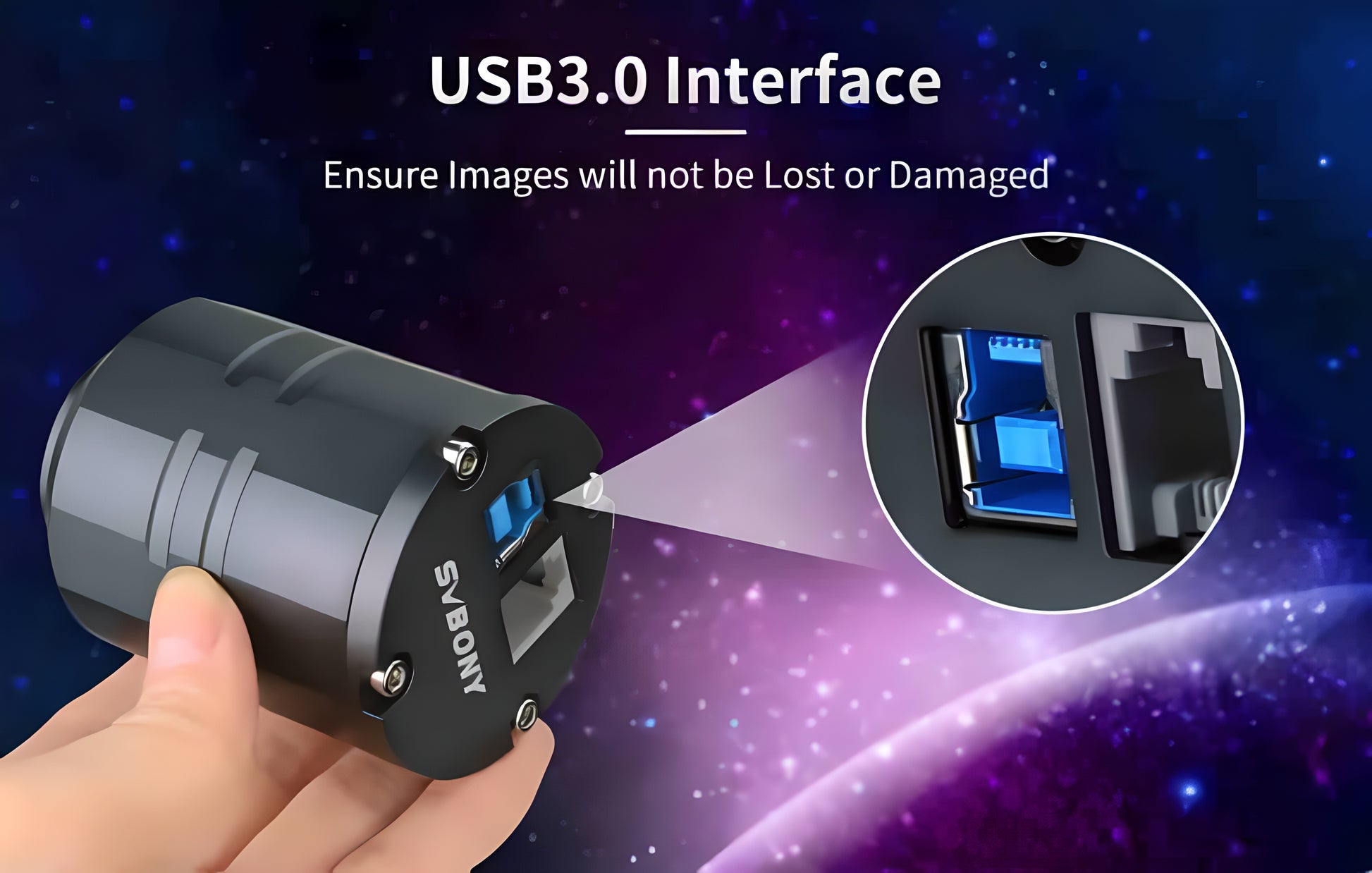

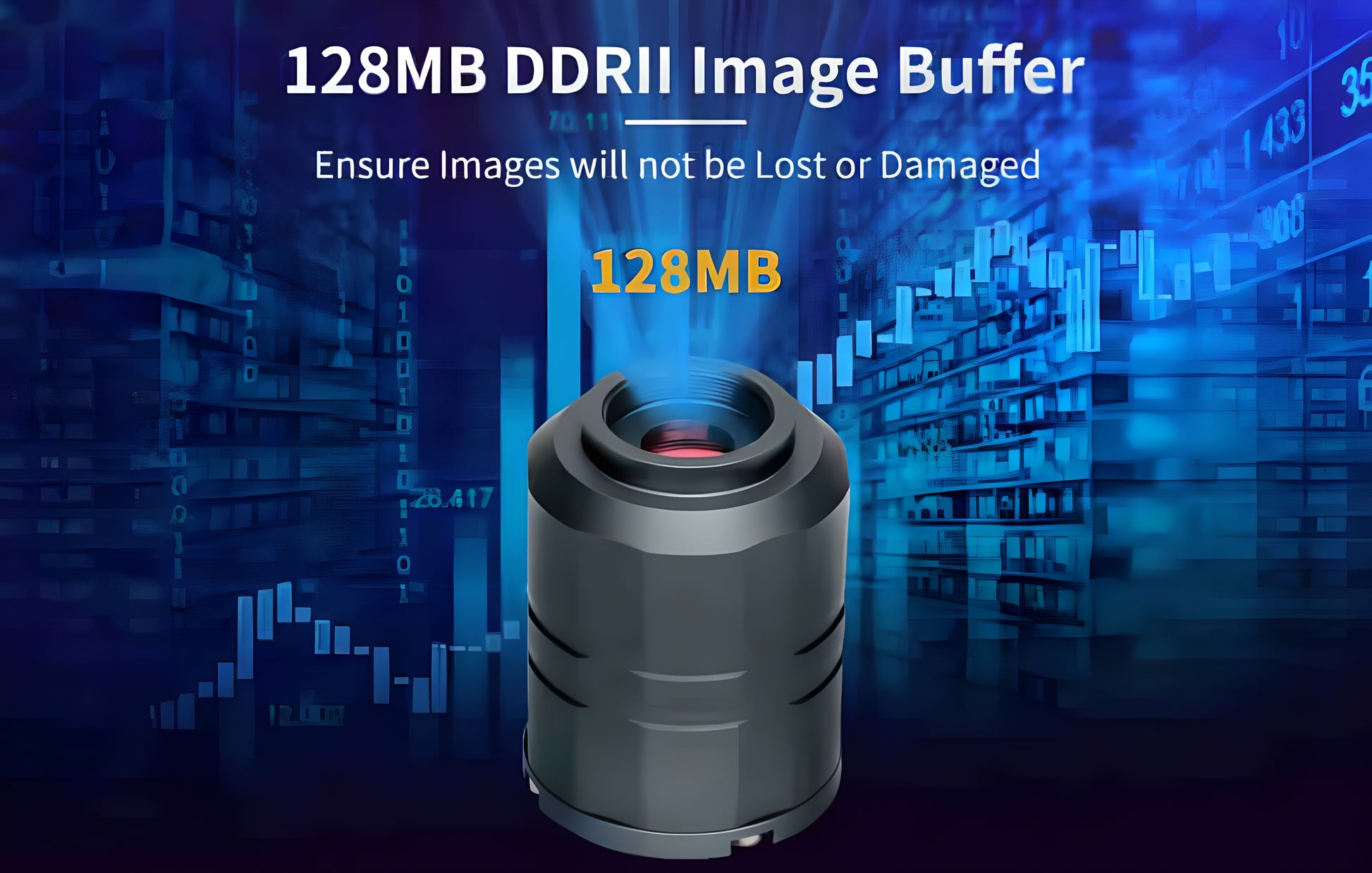

Built-in 128 MB Image Buffer and USB3.0 Interface:

• The 128 MB DDRII image buffer ensures stable and fast image transmission, with no frame loss.

ROI Function:

• The ROI (Region of Interest) function allows capturing specific details with a higher frame rate, optimizing planetary and lunar imaging.

Multi-System Compatibility:

• Compatible with Windows, Linux, Raspberry Pi, Mac OS, and Chrome OS, offering great flexibility of use.

Technical Specifications:

• Model: SV305 Pro
• Sensor: 1/2.8" color CMOS Sony IMX290
• Pixel size: 2.9µm x 2.9µm
• Resolution: 2 megapixels (1920 x 1080 at 120 FPS)
• USB Type: USB 3.0
• Shutter: Rolling electronic shutter
• Exposure time: 1 ms to 30 min
• Gain: Automatic/Manual
• Maximum frame rate: 120 FPS (1920 x 1080)

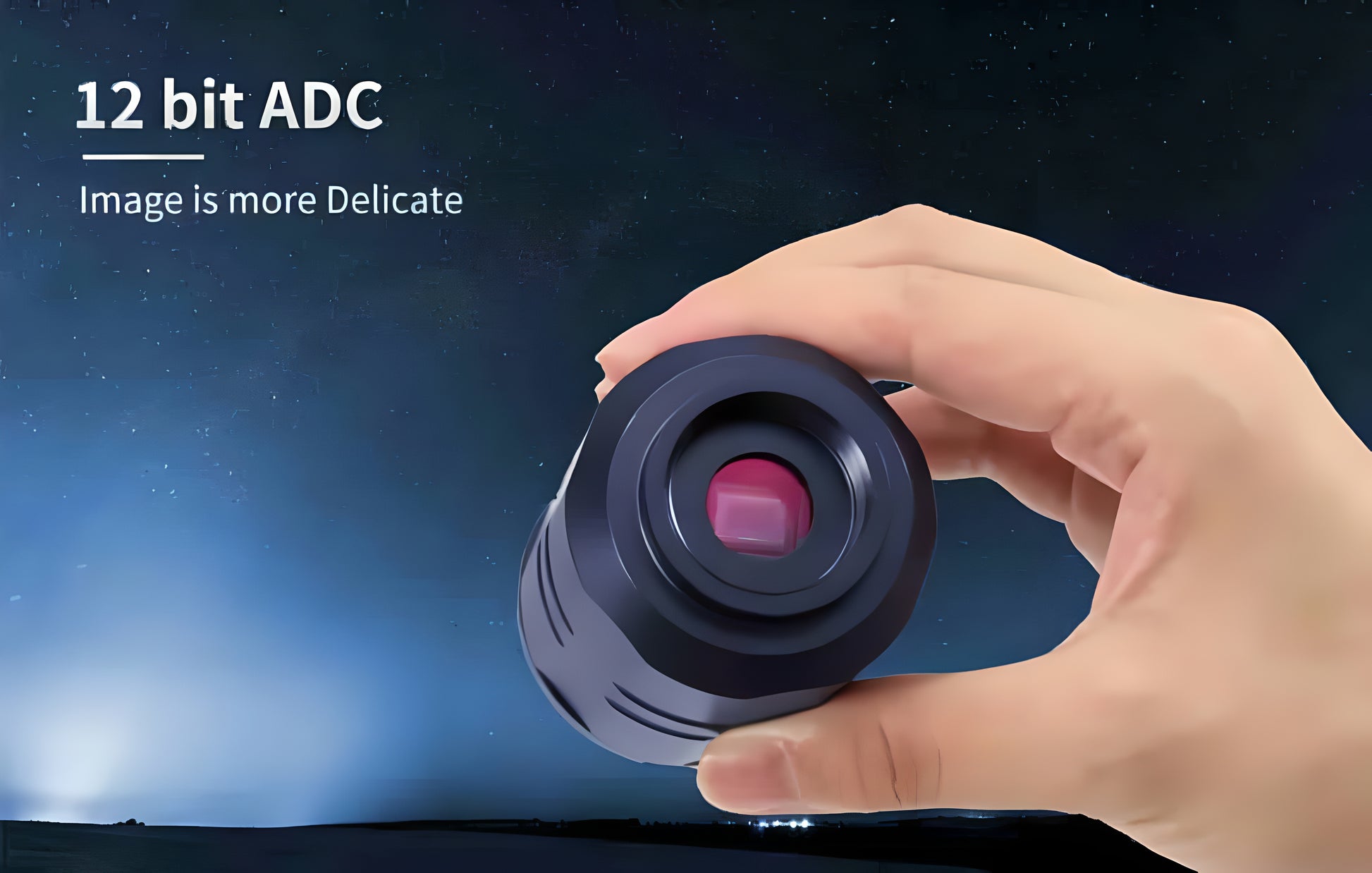

• ADC: 10 bits/12 bits, output 8 bits/12 bits

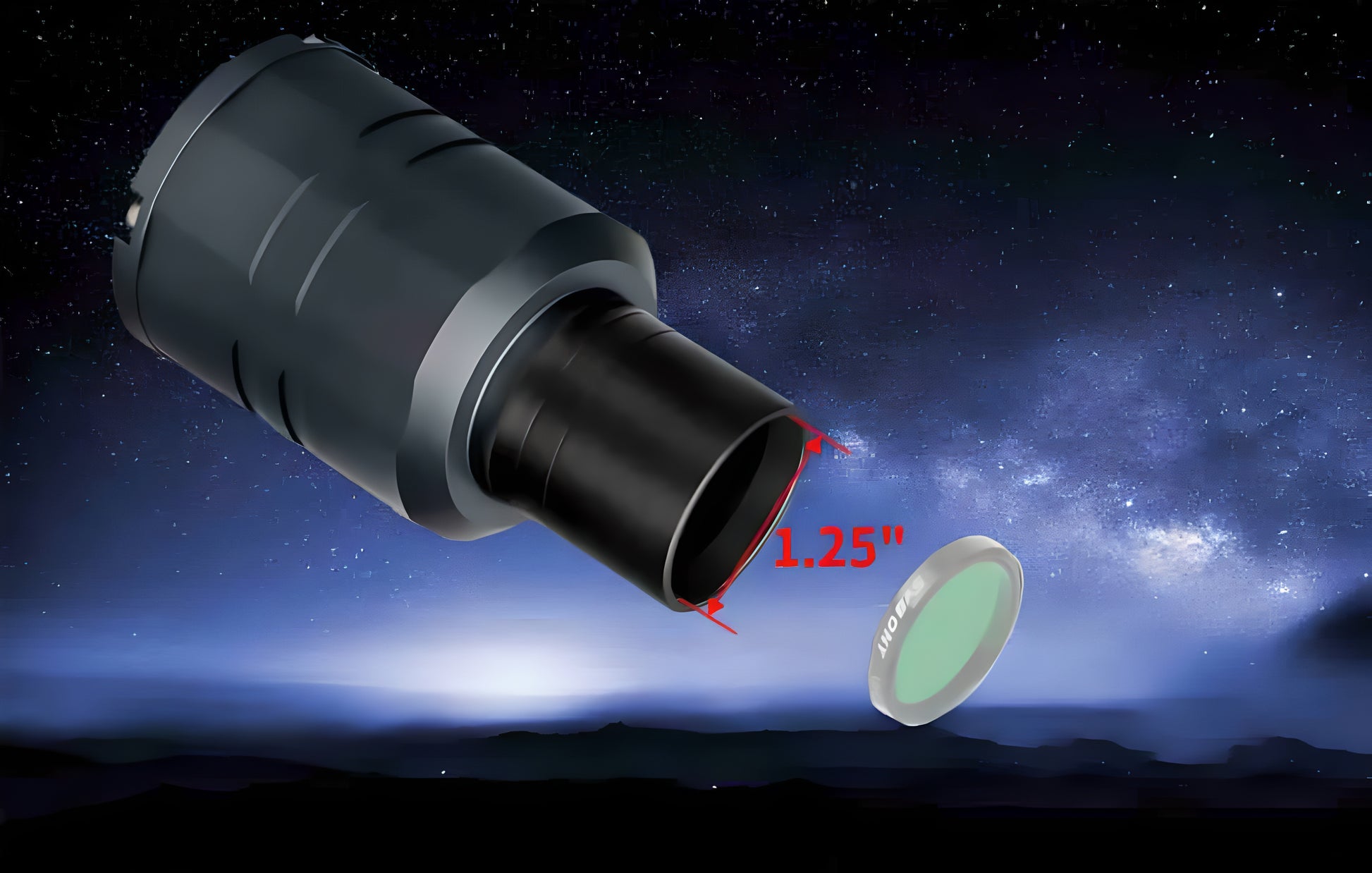

• Filter: Integrated IR CUT filter
• Power consumption: 230 mA at 5 V
• Product dimensions: Ø 49.5 x 65 mm
• Weight: 135 g
• Supported operating systems: Windows, Linux, Raspberry Pi, Mac OS
• Cable length: 2 m
• Operating humidity: 30%-80%
• Storage humidity: 20%-90%
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C

Recommended Applications:

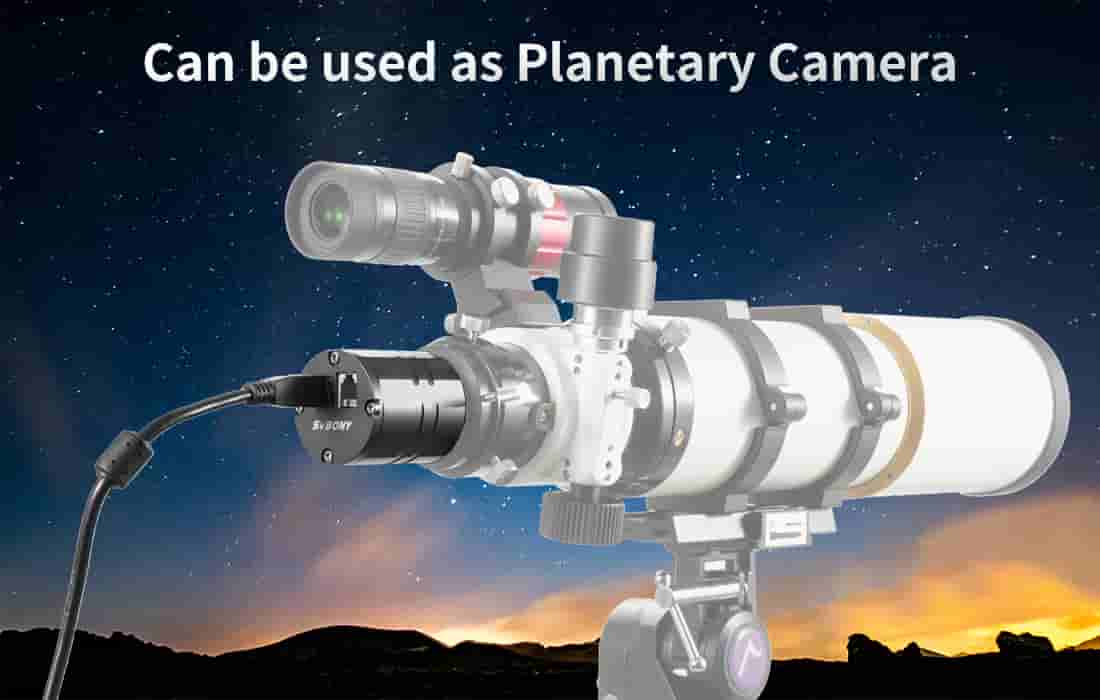

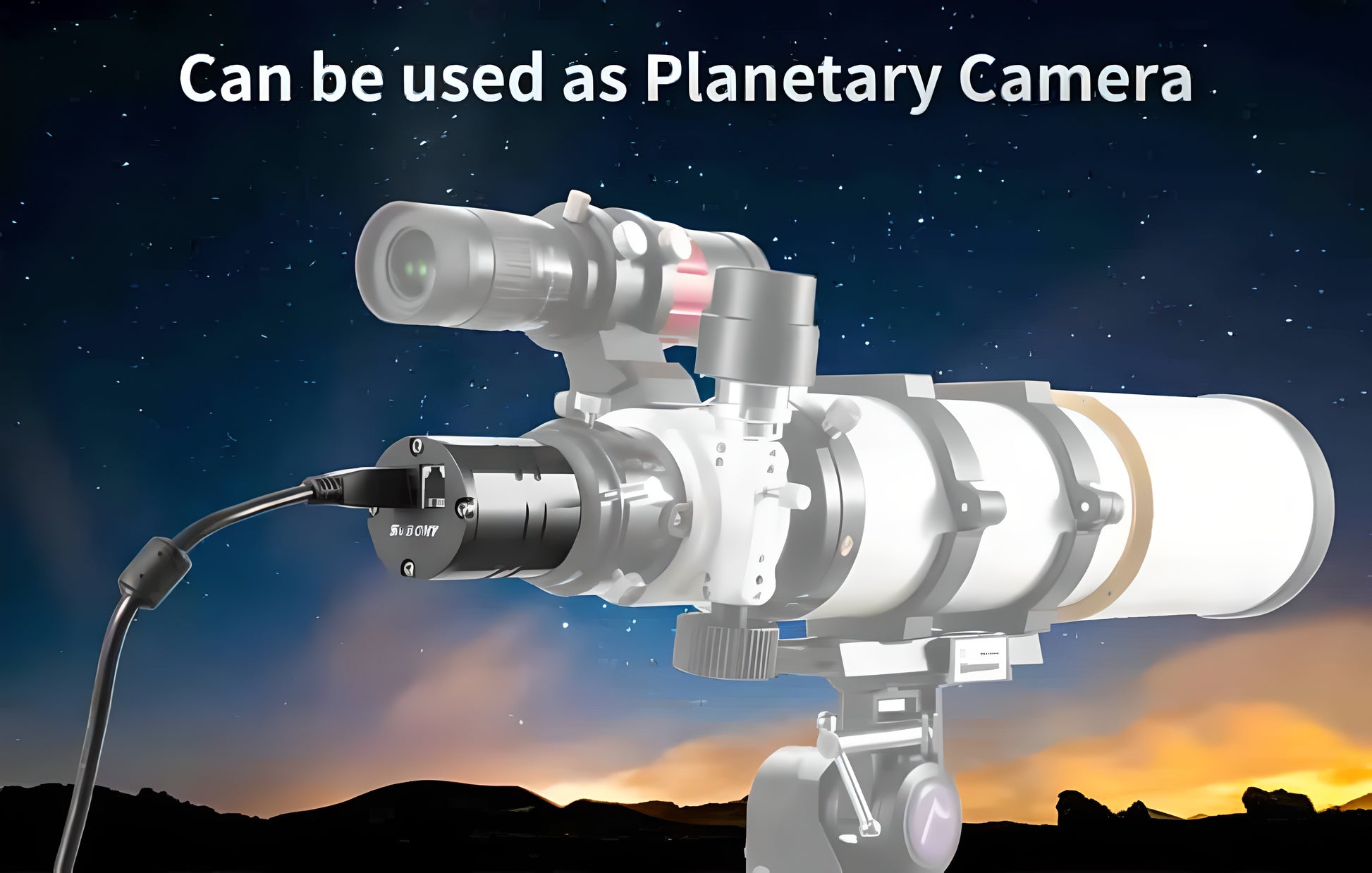

• Planetary Imaging: Capture detailed images of planets like Venus, Saturn, and Jupiter.
• Lunar Imaging: Take sharp and clear photos of the lunar surface.
• Solar Imaging: Use a secure solar filter to capture images of the sun.
• Double Star Imaging: Ideal for imaging double stars and other compact objects.

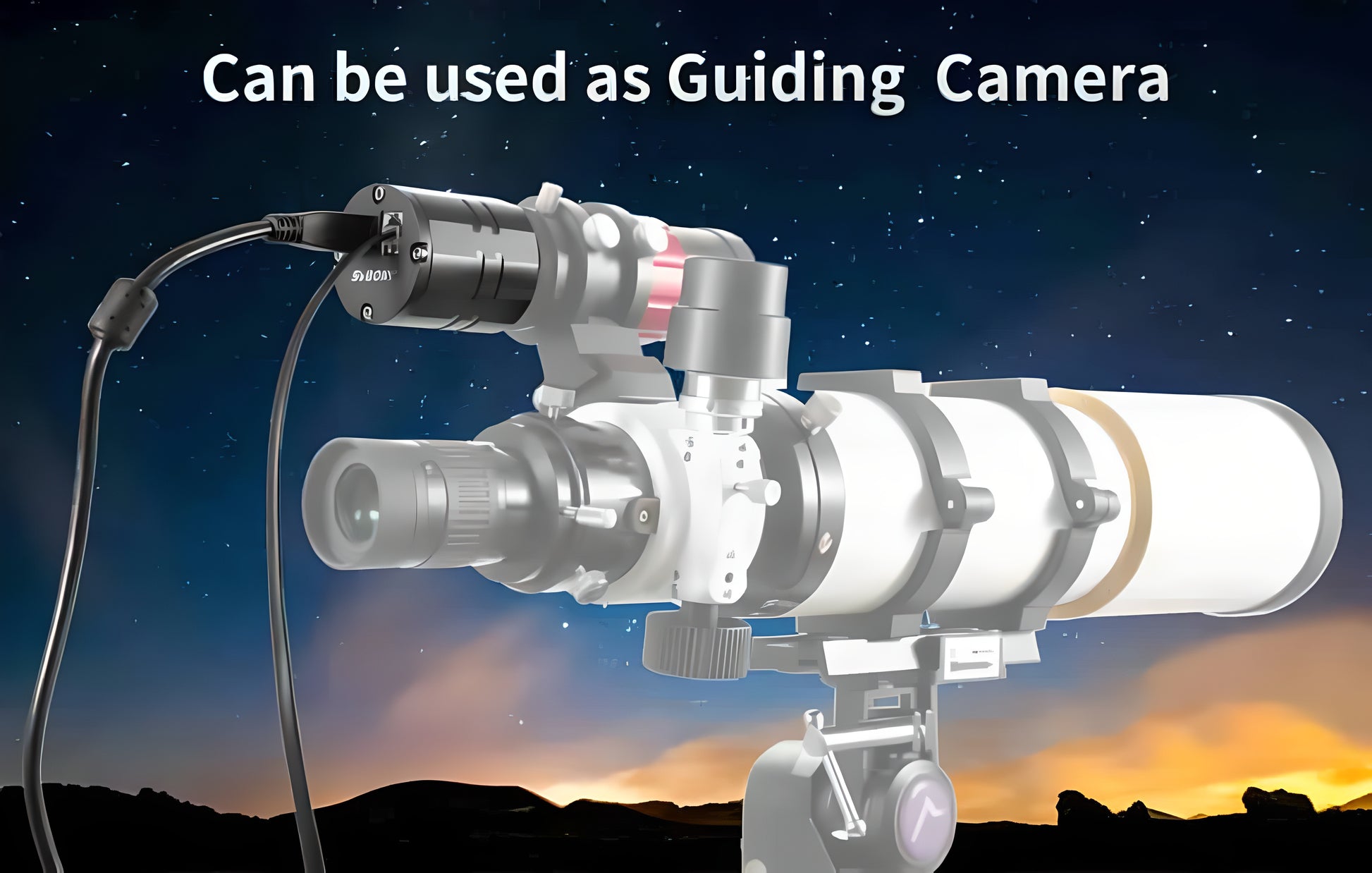

• Astrophotography Guiding: Use this camera with a refractor or reflector telescope mounted on an equatorial mount for precise guiding movements.

The SV305 Pro camera from SVBONY is a powerful and versatile tool for amateur astronomers and astrophotographers, offering exceptional performance for a variety of celestial imaging applications.
