The HAZ31 mount is lightweight, compact, and offers an average load capacity, perfect for an exceptional astronomical experience. Weighing only 3.7 kg (8.2 lbs) and able to support up to 14 kg (31 lbs) without requiring bulky counterweights or shafts, it is ideal for a variety of instruments.

Advanced Technology :

• Harmonic System : Used for right ascension (RA) and declination (DEC) movements, providing unmatched efficiency in terms of weight to load.
• Electronic friction brake : Allows for safe stopping of movements in case of planned or unforeseen power interruptions.

Construction and Design :

• Material : Fully metal body, CNC machined and anodized in black.

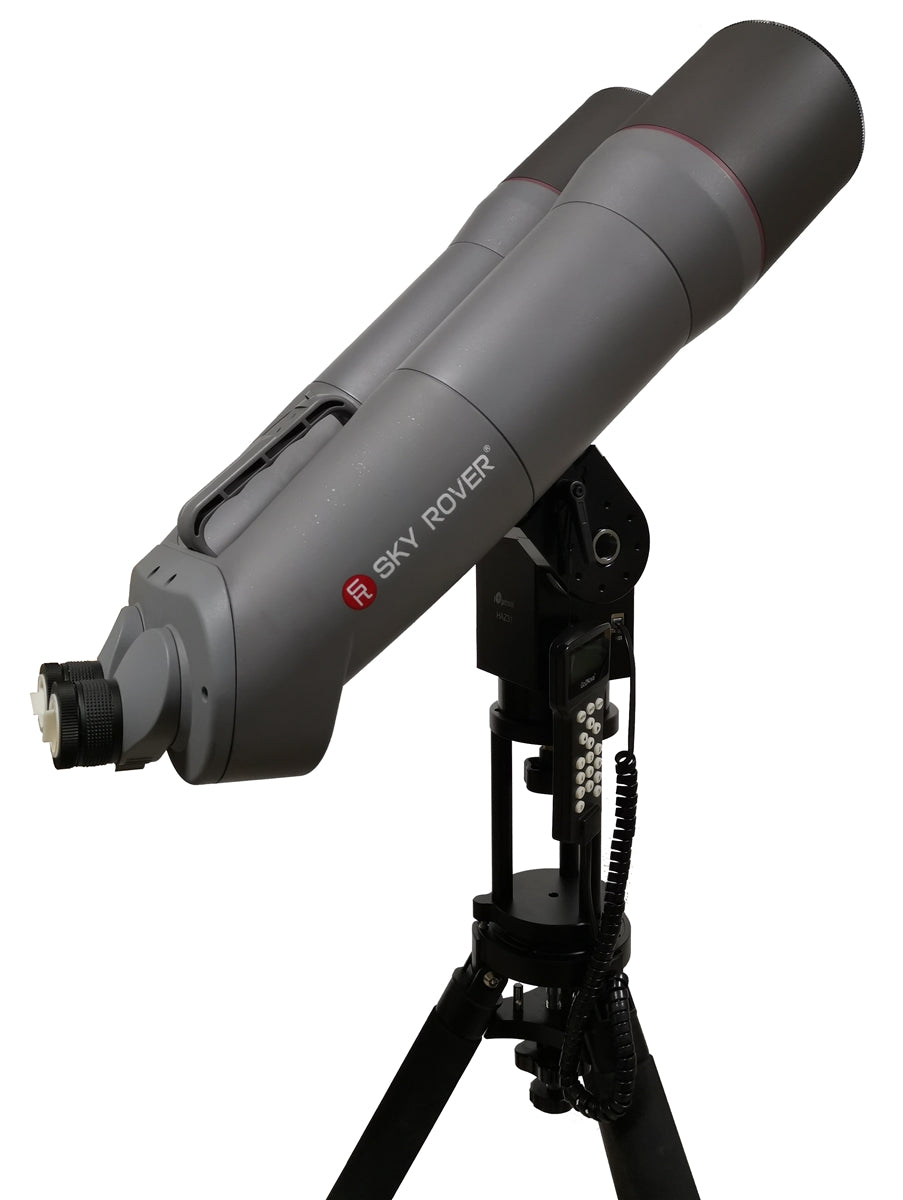

• Multi-position saddle : Can be placed on top or on the side, ideal for binoculars.
• Go2Nova® Controller : Database of approximately 212,000 objects.

Integrated Features :

• Built-in GPS : For precise and quick alignments.
• Built-in Wi-Fi : Via the manual controller for easy connectivity.
• USB Port : For firmware updates and computer control.
• Bubble Level : Built-in level indicator for precise setup.

Compatibility and Control :

• Computer control : Compatible with ASCOM/Commander for Windows PC, INDI driver for MacOS, and applications like SkySafari for smartphones/tablets.
• Satellite tracking : Built-in feature for specific observations.

Other Characteristics :

• Maximum movement speed : Up to 8º/sec.
• Power consumption : 0.6A in tracking, 1A in GOTO mode.
• Power adapter : AC input 100-240V (included, indoor use only).
• Operating temperature : From -20ºC to 40ºC.

Technical Specifications :

• Type of mount : Altazimuth mount with strain wave
• RA/DEC gear system : Harmonic
• RA/DEC reduction ratio : 480:1
• Load capacity : 14 kg (31 lbs)
• Mount weight : 3.7 kg (8.2 lbs) with dovetail saddle
• Mount load/weight ratio : 3.78
• Drive motor : Stepper motor
• Structure material : All metal, CNC machined
• Exterior finish : Black anodized
• Control system : GOTONOVA/Commander
• Manual controller : Go2Nova® 8409 with ~212,000 objects
• Tracking : Automatic
• Electronic brake : Friction brake
• Connectivity : Built-in Wi-Fi and USB port via manual controller
• Compatibility : Compatible with Vixen and Losmandy saddles
• Optional accessories : Tripod

Package Contents :

• HAZ31 Mount
• Go2Nova® Manual Controller
• Power Adapter
• Connection Cables
• User Manual
• Carrying Case

The HAZ31 mount is a robust and versatile solution for amateur and professional astronomers, offering a high load capacity and exceptional stability for accurate observations and photographs of the night sky.
