Sky-Watcher Black Diamond 120ED f/7.5 Scope on NEQ5 Pro GoTo Mount

Discover the Sky-Watcher Black Diamond 120ED telescope mounted on the NEQ5 Pro GoTo mount, an ideal combination for deep sky astrophotography and planetary observation. With its superior optical quality and automated pointing system, this scope gives you breathtaking views of the night sky.

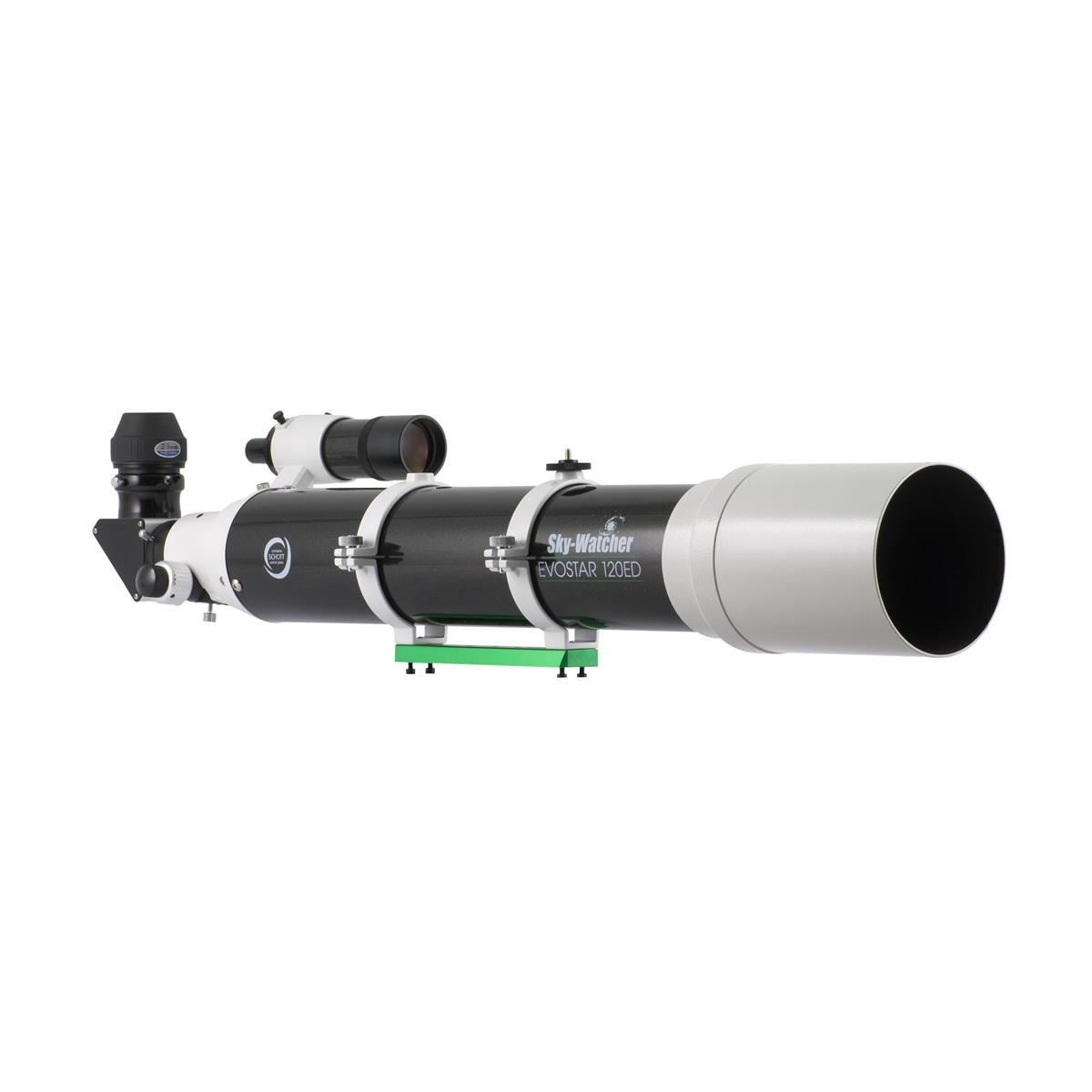

Optical Tube Characteristics:

• Optical formula: Apochromatic telescope
• Useful diameter: 120 mm
• Focal length: 900 mm
• Focal ratio: f/7.5
• Lens: Doublet with multi-layer treated ED FPL-53 glass (Schott)
• Focus: Crayford 50.8 mm dual speed (10:1) aluminum
• Material: Aluminum tube with blackened and baffled interior to limit stray light
• Weight (with collars and dovetail): 5.2 kg
• Tube dimensions (length x width): 920 mm x 140 mm

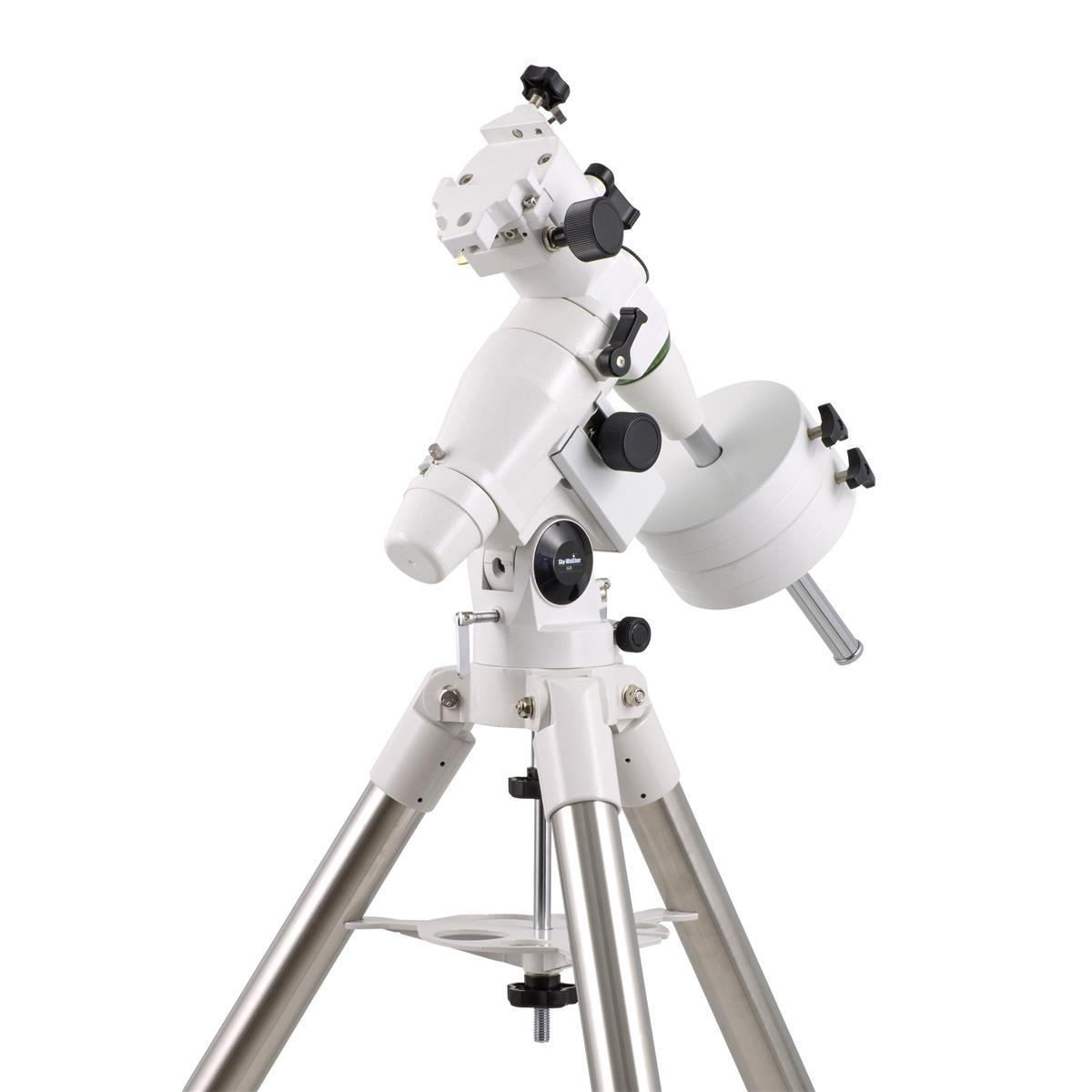

Mount Features:

• Type: German NEQ5 equatorial mount
• Motorizable: On one axis (option SW0135) or two axes (option SW0137)

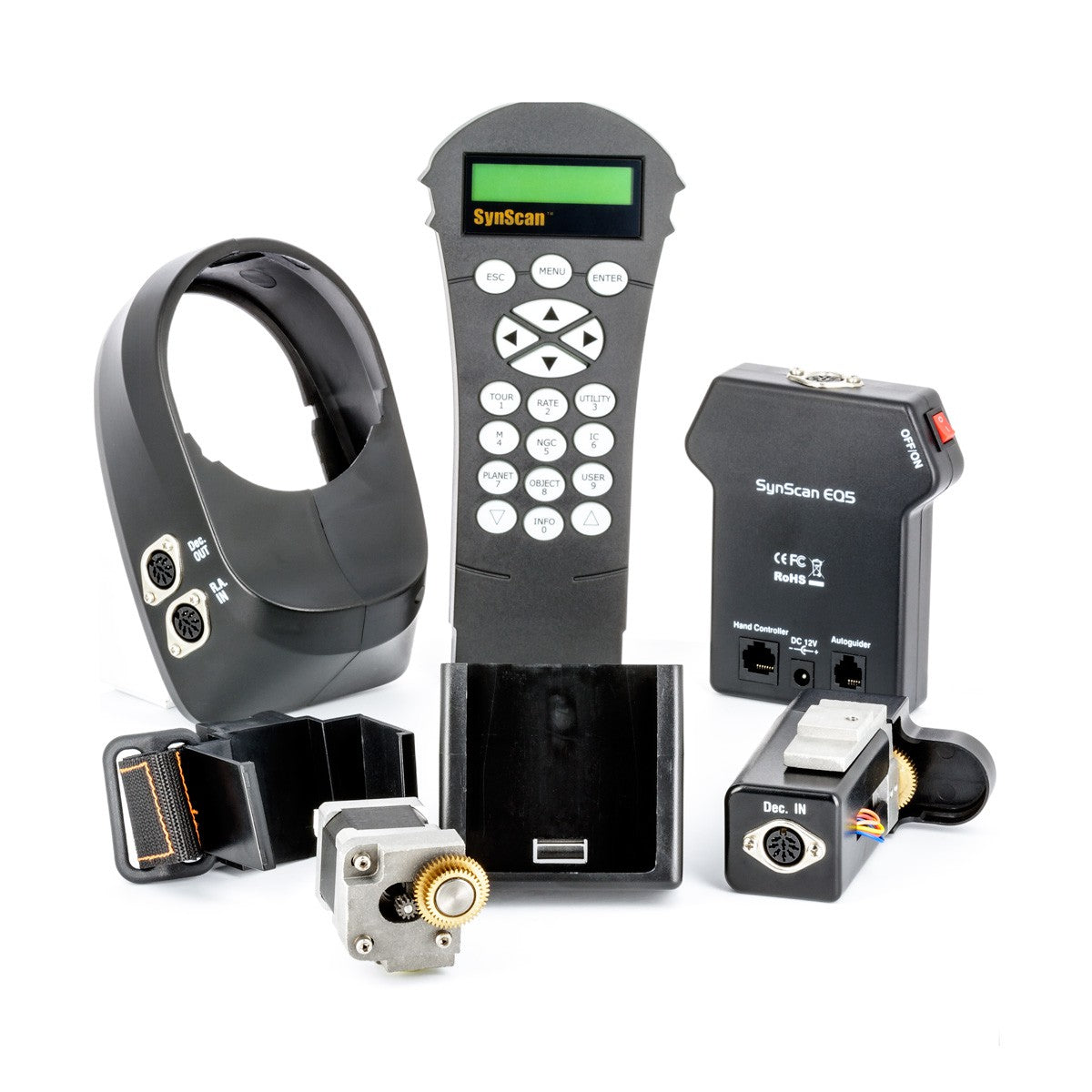

• Go-To kit: Possible addition of a Pro Go-To kit (option SW0126)
• Load capacity: 9 kg for visual observation, 7.5 kg for astrophotography
• Tripod: Height-adjustable tubular steel tripod (71 cm to 123 cm)
• Mount weight: 6 kg
• Tripod weight: 3.8 kg
• Counterweight: 2 counterweights of 5 kg each
• Adjustments: Azimuth and latitude movement for precise station setting

Advantages:

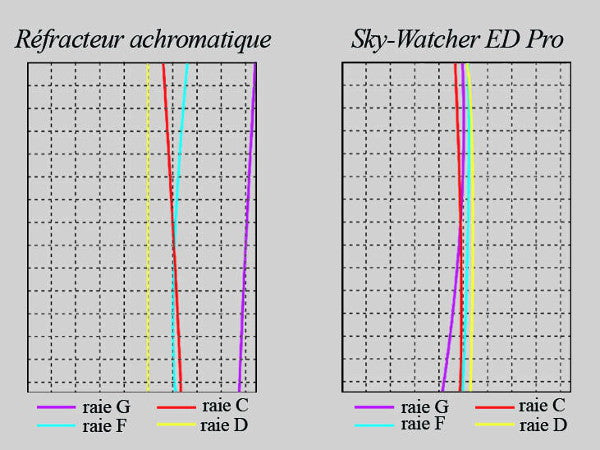

• High Quality Optics: FPL-53 ED glass minimizes chromatic aberrations, providing sharp, contrasty images.
• Multi-layer Coatings: “Metallic High-Transmission” (MHC) for light transmission close to 99.5%, guaranteeing bright and detailed views.
• Focusing Accuracy: Dual-speed Crayford focuser for fine adjustments, ideal for astrophotography.
• Solid and Elegant Construction: Robust aluminum tube without plastic parts, with an aesthetic black and white design.
• Mount Stability and Versatility: The NEQ5 mount ensures great stability even at high magnifications, and is ideal for long exposure imaging.

Usage:

• Planetary and Lunar Observation: Optimal performance for observing the details of the Moon, the Sun (with appropriate filter) and the planets.
• Deep Sky Astrophotography: Ideal for photographing nebulae, galaxies and globular clusters thanks to its short focal ratio and high brightness.

Accessories Included:

• Researcher Support
• Clamps with Vixen type dovetail
• Kodak thread screw for camera adaptation
• 2 counterweights for balancing
• Cigarette lighter cable

Notes:

• Maintenance: Avoid sudden temperature changes to prevent lens fogging. Never look directly at the sun without an adequate sun filter.

The Sky-Watcher Black Diamond 120ED telescope on NEQ5 Pro GoTo mount is the perfect choice for amateur astronomers wanting to explore the sky with exceptional precision and clarity. Enjoy high-quality optics and a stable mount for unforgettable astronomical observations and photographs.
