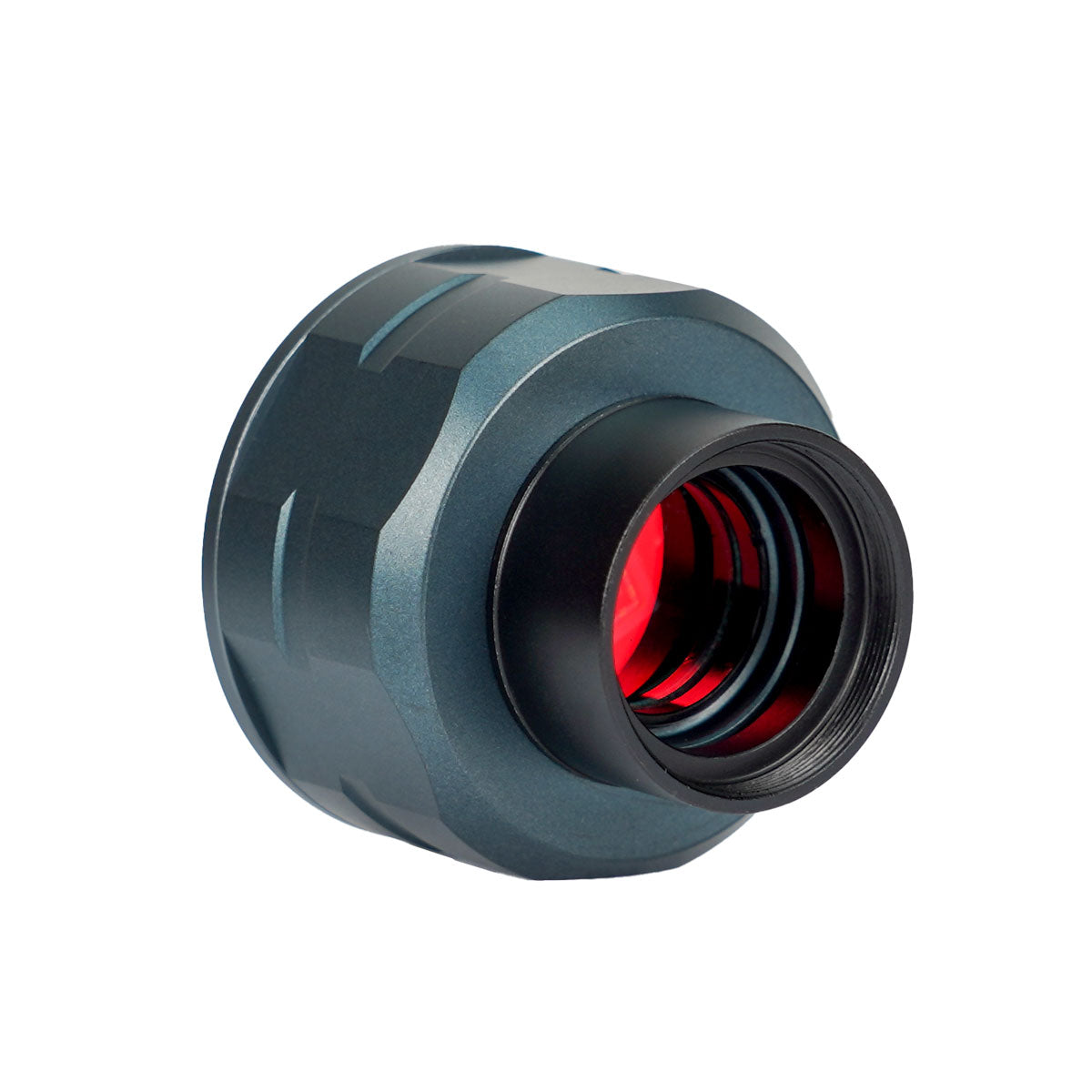

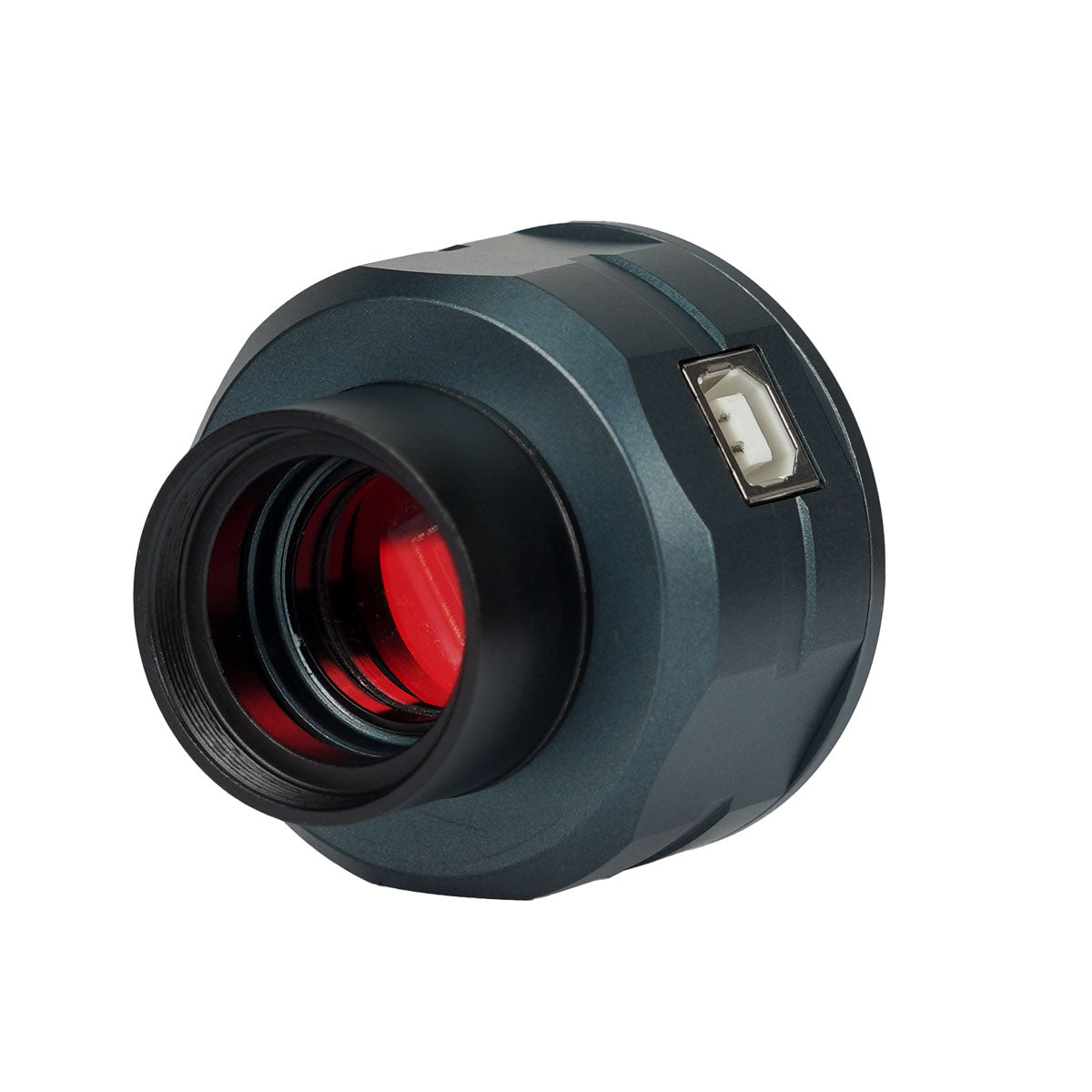

SV105C Planetary Camera

The SVBONY SV105C planetary camera is specially designed for beginners in astrophotography. Equipped with a Sony IMX307 CMOS sensor and a USB2.0 interface, this camera is ideal for capturing clear and sharp images of the Moon and planets. Its low light compensation technology considerably enhances image clarity in low light conditions, without pixel vignetting.

Main features:

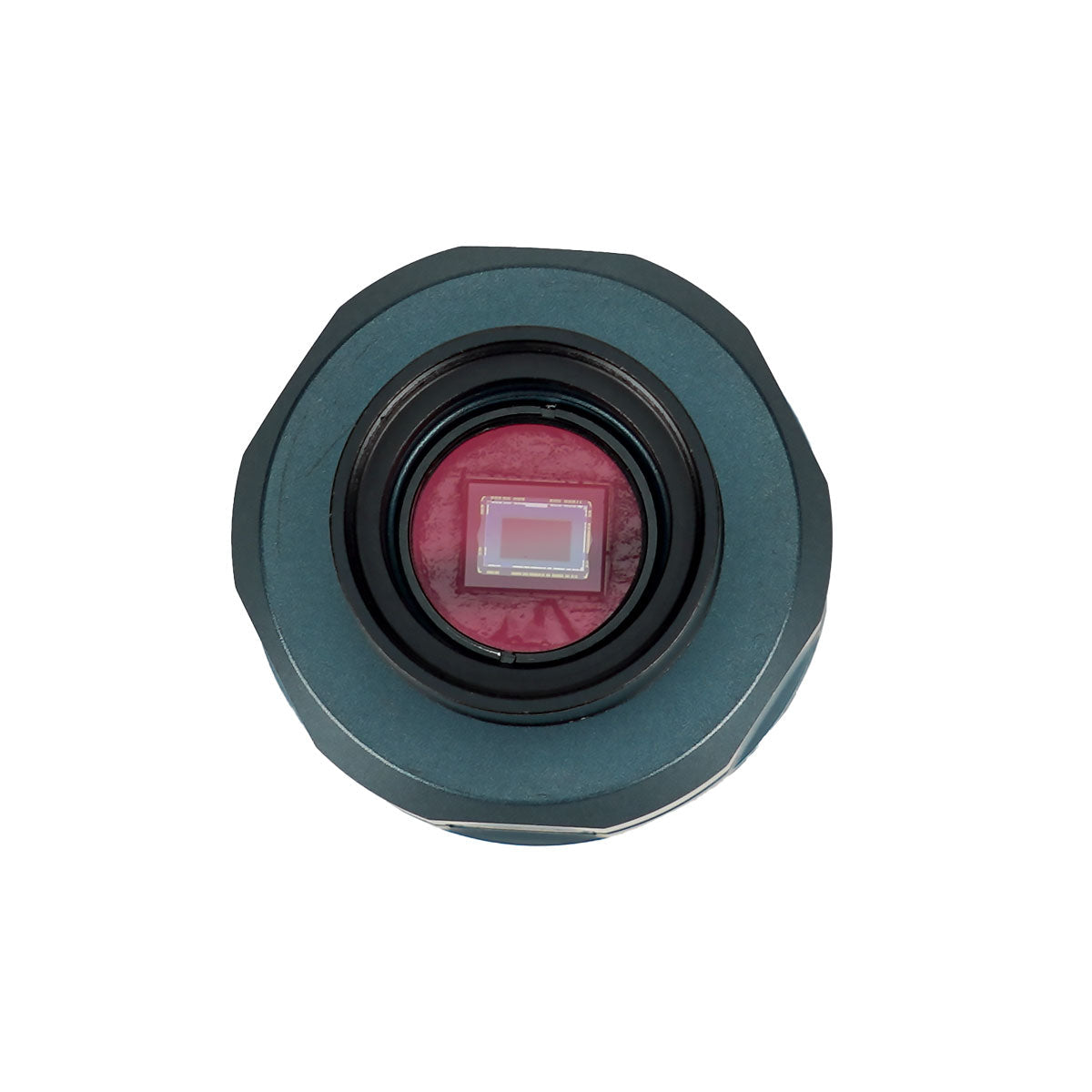

IMX307 CMOS Sensor:

• Uses a Sony IMX307 CMOS sensor with a resolution of 2.07 megapixels (1920 x 1080).
• Low light compensation technology to improve image clarity in low light.

Real-Time Video:

• Capable of recording 2K videos at speeds up to 30 frames per second in 1920x1080 resolution.
• MJPG video format for fast and smooth video recordings.

Standard UVC Interface:

• Complies with the standard UVC protocol, meaning no specific drivers are needed for SVBONY.

Lightweight and Compact Design:

• Lightweight at 100g with a cable length of 1.8m, making it easy to install and use.

Technical Specifications:

• Model: SV105C
• Sensor: 1/2.8" Sony IMX307 color CMOS
• Pixel Size: 2.9µm x 2.9µm
• Image Resolution: 2.07 megapixels (1920 x 1080)
• USB Type: USB 2.0
• Shutter: Rolling electronic shutter
• Exposure Time: 15 ms to 1000 ms
• Maximum Frame Rate (YUY2): 30 FPS in MJPG 1920x1080, 5 FPS in YUY2 1920x1080
• ADC: 10 bits / 12 bits
• Interface Protocol: Standard UVC protocol

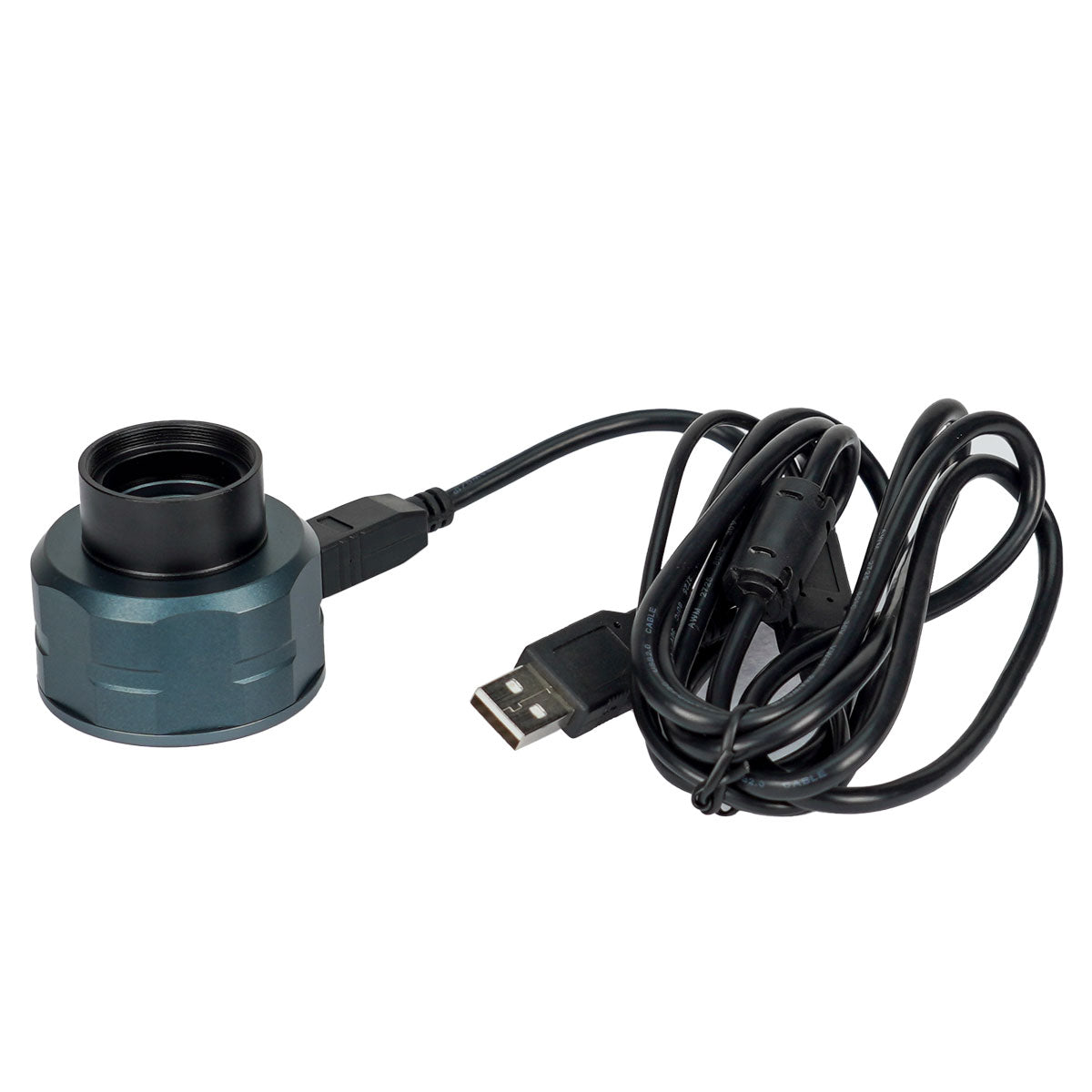

• Cable Length: 1.8 m
• Weight: 100 g
• Supported Operating Systems: Windows 8, 10, 11, Linux, Android
• Power Consumption: 150 mA at 5 V
• Operating Humidity: 30%-80%
• Storage Humidity: 20%-90%
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -10°C to +60°C

Recommended Applications:

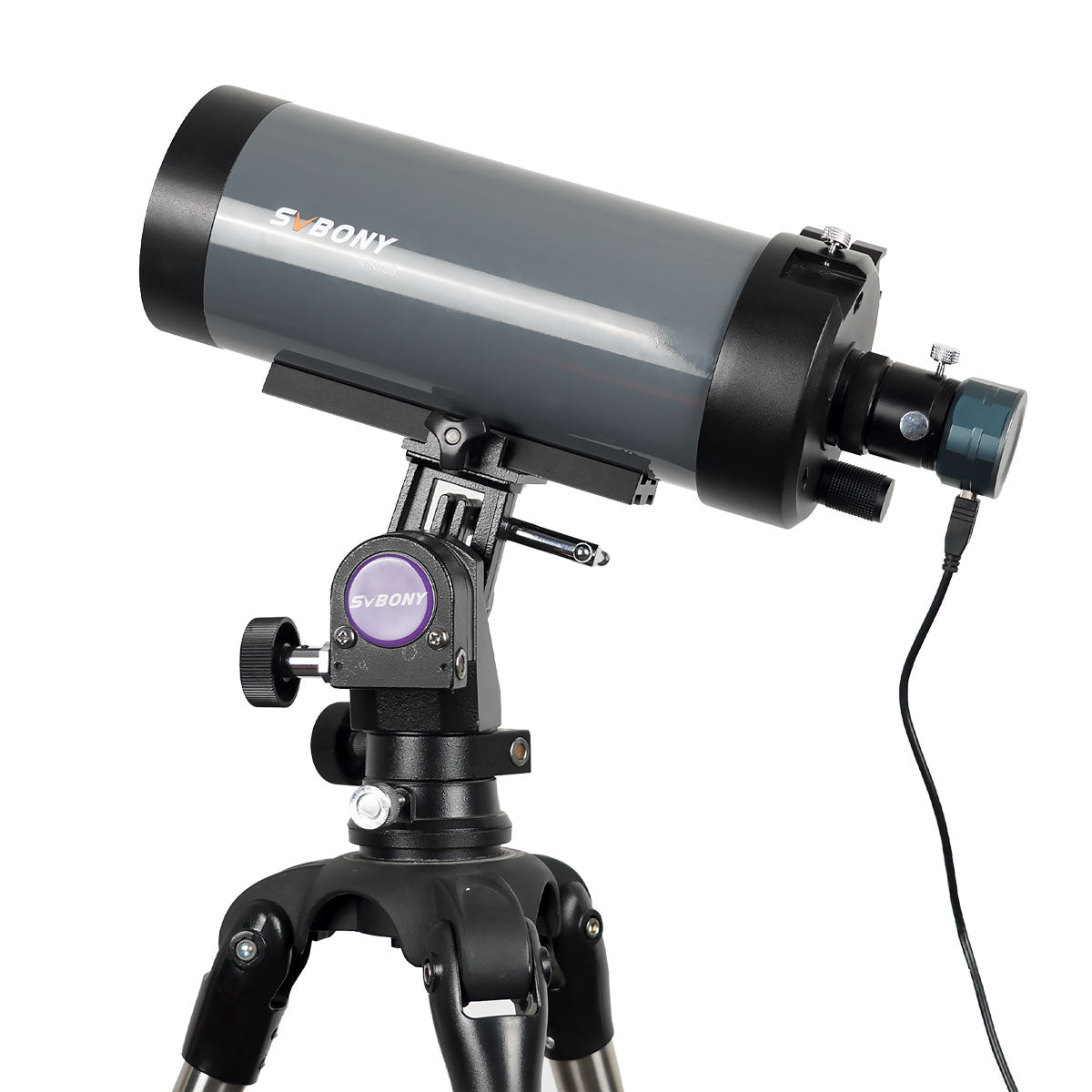

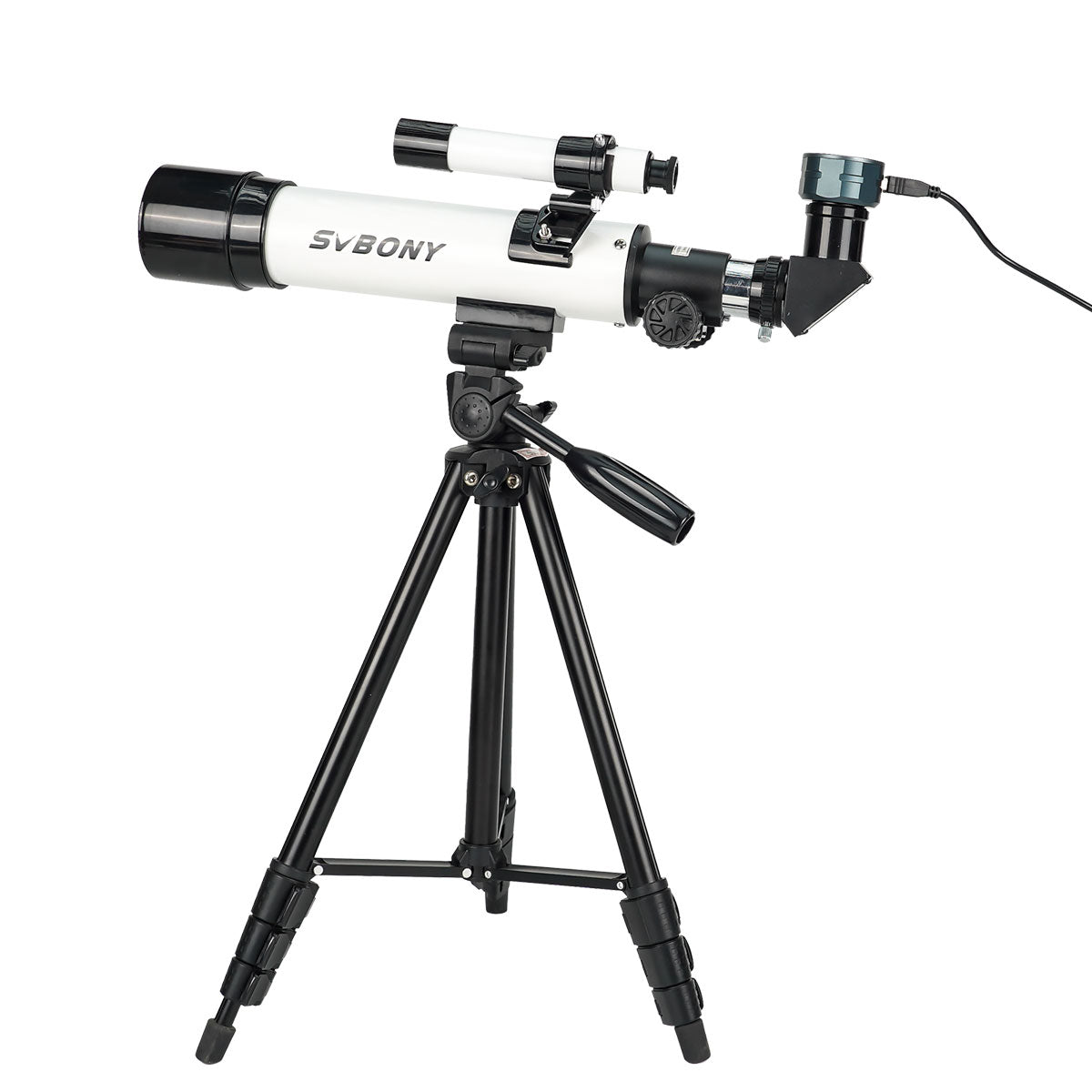

• Lunar and planetary imaging: Perfect for capturing images of the Moon, Jupiter, Saturn, and other bright planets.

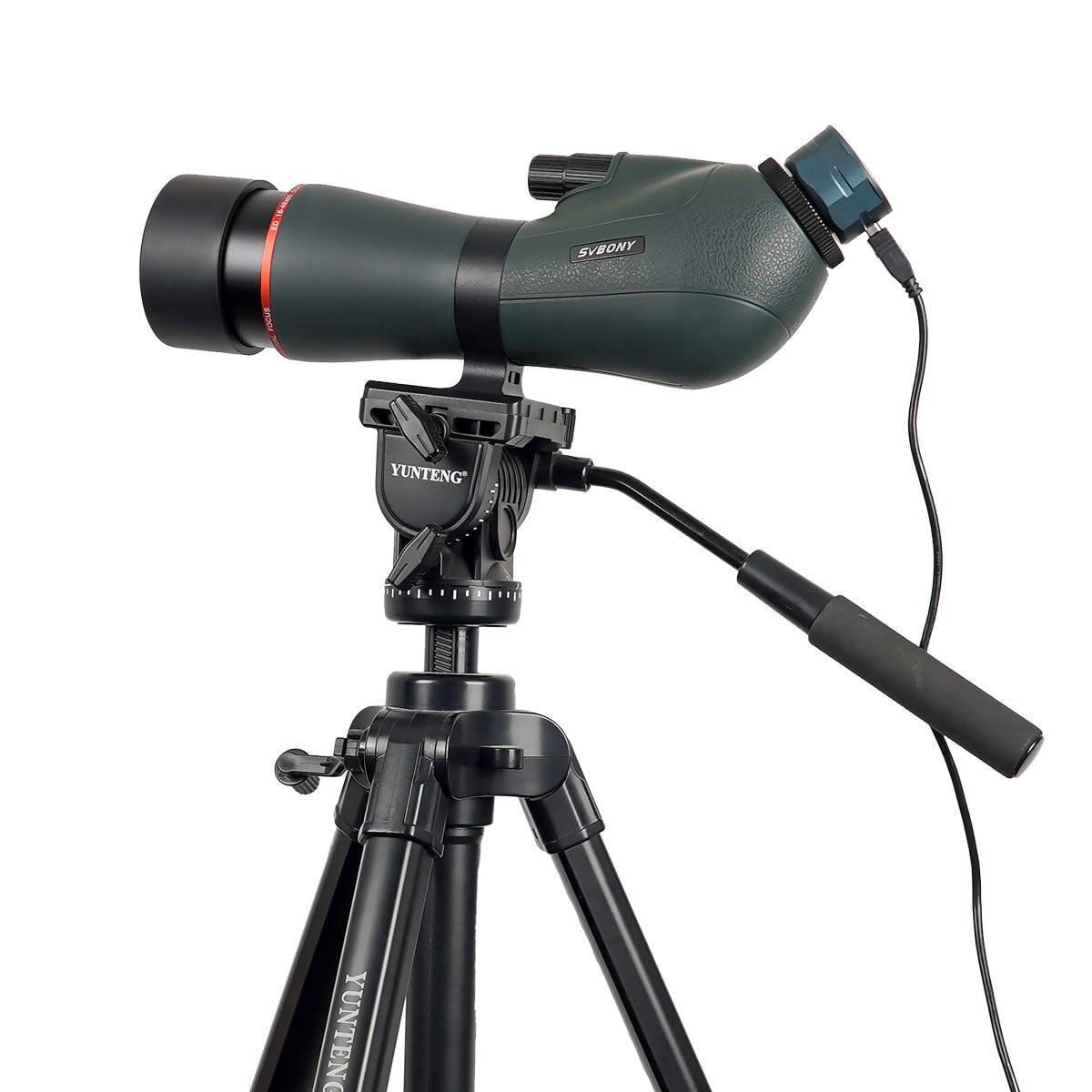

• Land observation: Share the view of bright terrestrial targets.
• Not suitable for deep space imaging: This camera is primarily designed for lunar and planetary imaging and is not recommended for deep space objects.

The SVBONY SV105C is an ideal camera for beginner astrophotographers looking to capture sharp and detailed images of the Moon and planets. Its plug-and-play installation and multi-system compatibility make it very accessible and easy to use.
