SVBONY SV116 Guiding Ring for Telescope

SVBONY SV116 Guiding Ring for Telescopes

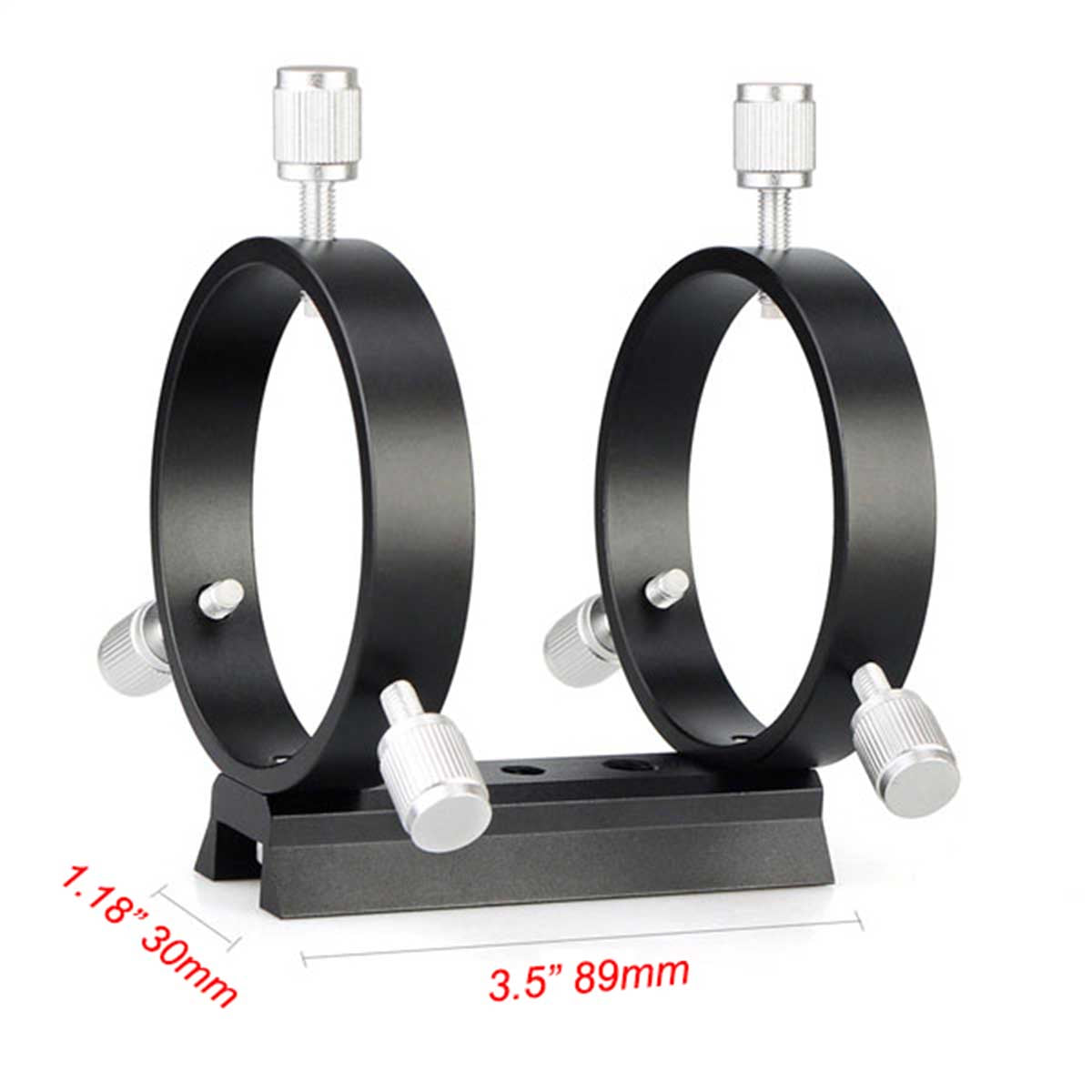

The SVBONY SV116 guiding ring set is designed for compact tube telescopes, ideal for astrophotography. This set consists of two metal rings that can accommodate telescopes with a tube diameter ranging from 43mm to 70mm.

Features

• Inner Diameter of the Tube : 70mm
• Adjustable Adjustment Range : 43mm-70mm
• Diameter of Metal Screws : 12mm with knurled pattern
• Guiding Ring Threads : M5
• Plate Threads : M8, UNC1/4-20 and M6

Technical Details

The set includes two robust metal rings with knurled screws for easy and secure grip. The adjustment nuts feature a Teflon coating to prevent cosmetic scratches and pressure marks on the telescope while ensuring reliable clamping.

The mounting plate has three threaded holes, one central with UNC1/4-20 threads and two larger ones on either side with M8 x 1.25 threads, thus facilitating adaptation to different mounting systems.
