SV205C Planetary Camera

The SVBONY SV205C is a high-quality electronic camera for astrophotography, ideal for beginners. Featuring a Sony IMX415 CMOS sensor and a USB3.0 Type-B port, this camera is designed to capture clear and detailed images of the Moon, Jupiter, Saturn, double stars, as well as some bright deep-space objects. It is compatible with the standard UVC protocol, meaning it does not require a specific SVBONY driver and is ready to use.

Main Features:

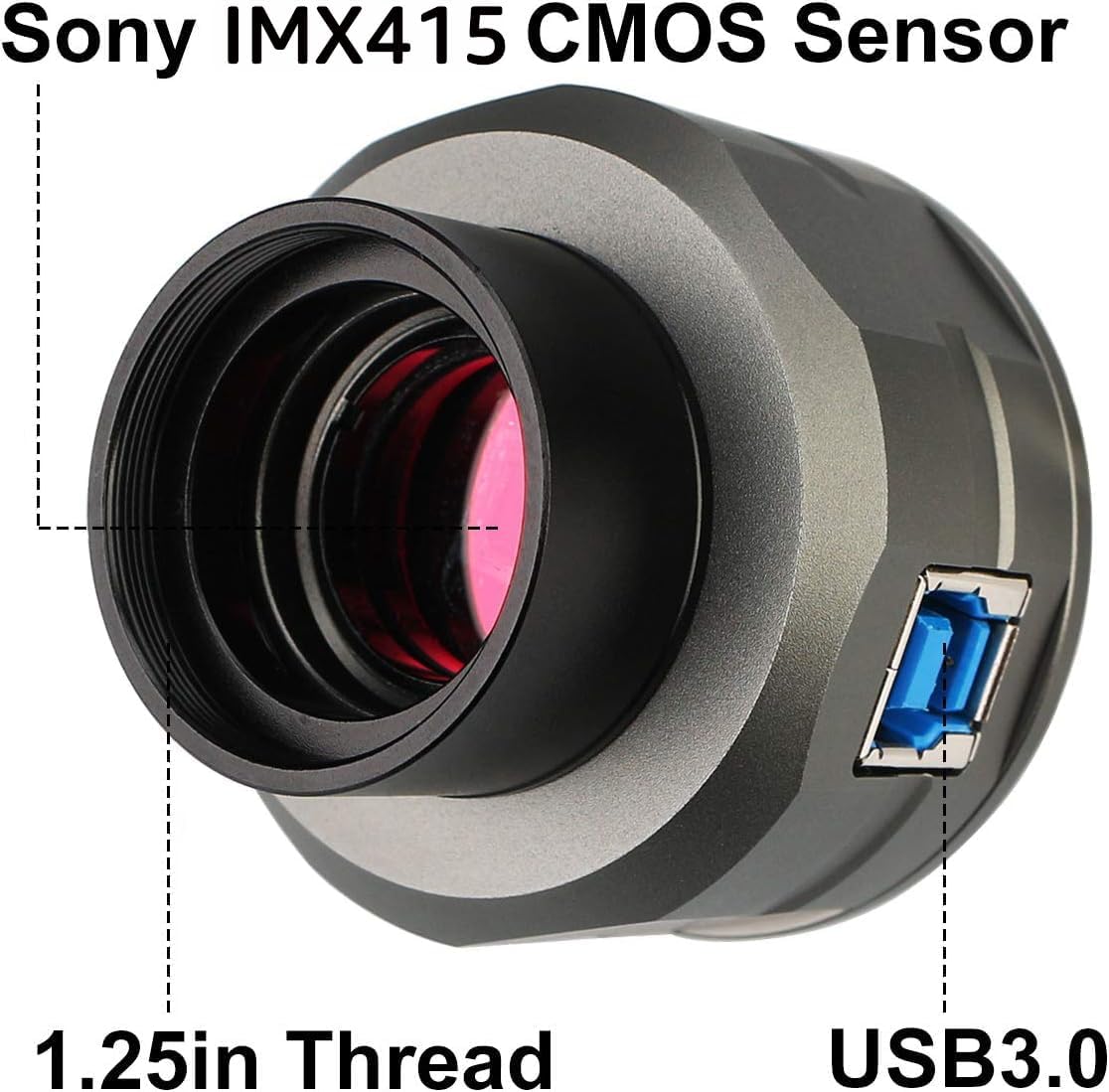

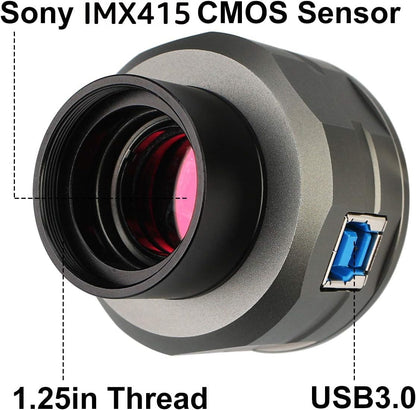

IMX415 CMOS Sensor:

• Uses a Sony IMX415 CMOS sensor with 7.05 megapixels, offering a resolution of 3264 x 2160.
• Low-light compensation technology, significantly improving image clarity in low-light conditions.

Real-Time Video:

• Records real-time videos and transfers them to a laptop or PC.
• In MJPG video format, the camera can record videos at a rate of up to 30 frames per second in 1920x1080 resolution.
• Uncompressed YUV video format also available.

Machined Aluminum Adapter:

• The 1.25" aluminum adapter allows for a direct threaded connection to almost all telescopes.

Removable IR-CUT Filter:

• Comes with a built-in UV IR-CUT filter, offering high transmittance of over 96% in the visible light range (400-700 nm).
• The filter can be removed for imaging in infrared or ultraviolet bands.

Multi-System Compatibility:

• Compatible with Windows, Linux, Android, and Raspberry Pi OS, offering great flexibility of use.

Technical Specifications:

• Model: SV205C
• Sensor: 1/2.8" Sony IMX415 color CMOS
• Pixel Size: 1.45µm x 1.45µm
• Image Resolution: 7.05 megapixels (3264 x 2160)
• USB Type: USB 3.0
• Shutter: Rolling electronic shutter
• Exposure Time: 15 ms to 1000 ms
• Gain: 0-120
• Maximum Frame Rate (YUY2): 30 FPS in MJPG 1920x1080, 15 FPS in YUY2 3264x2160
• ADC: 10 bits
• Filter: IR-CUT filter
• Interface Protocol: Standard UVC protocol
• Cable Length: 1.8 m
• Weight: 100 g
• Supported Operating Systems: Windows, Linux, Android, Raspberry Pi OS
• Power Consumption: 230 mA at 5 V
• Operating Humidity: 30%-80%
• Storage Humidity: 20%-90%
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -10°C to +60°C

Recommended Applications:

• Planetary Imaging: Ideal for capturing images of the Moon, Jupiter, Saturn, and other planets.
• Lunar and Solar Imaging: Capture sharp images of the lunar surface and, with a secure solar filter, of the sun.
• Double Star and Compact Object Imaging: Excellent for double star imaging and other bright compact objects.
• Imaging of Certain Deep Space Objects: Suitable for observing certain bright deep space objects.

The SVBONY SV205C camera is an excellent choice for beginner astrophotographers, offering solid performance for a variety of celestial imaging applications.
