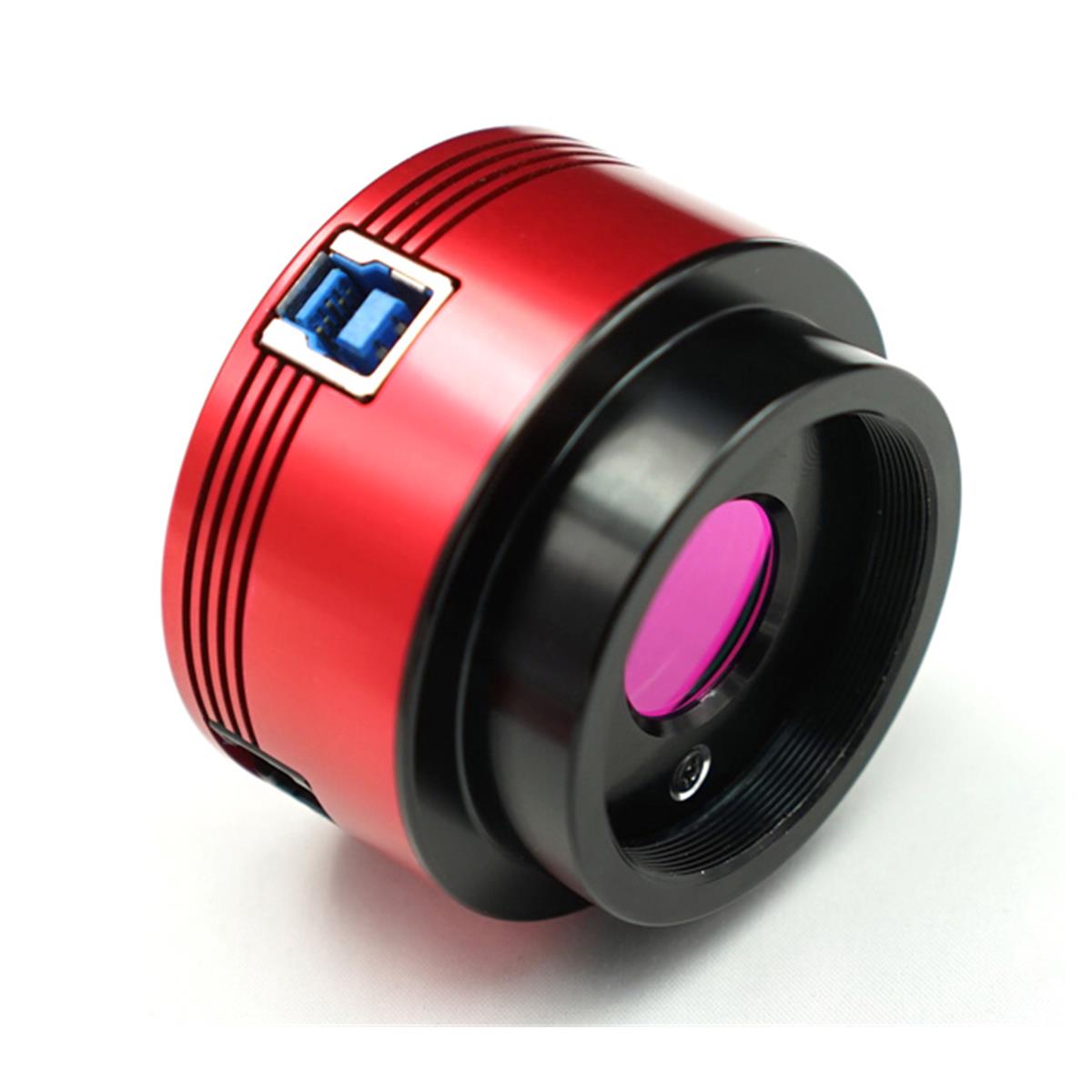

ZWO ASI174MM Monochrome Camera - High Performance for Planetary and Autoguiding

The ZWO ASI174MM camera is a high-performance solution for planetary, lunar imaging and autoguiding. Equipped with a 2.3 million pixel IMX174 monochrome CMOS sensor, it offers high resolution and optimal sensitivity to capture fine details of celestial objects.

Features:

• Sensor: IMX174 monochrome CMOS
• Sensor size: 1/1.2" (1936 x 1216 px)
• Pixel size: 5.86 µm
• Sensor area: 80.80 mm² (11.34 mm x 7.12 mm)
• Full load capacity (FWC): 32,000 e-
• Maximum sensitivity (QE peak): 78%
• Exposure time range: 32 µs to 1000 s
• Maximum frame rate:
  • 12-bit: up to 128 frames/s at full resolution (1936 x 1216 px)
  • 10-bit: up to 164 frames/s at full resolution (1936 x 1216 px)

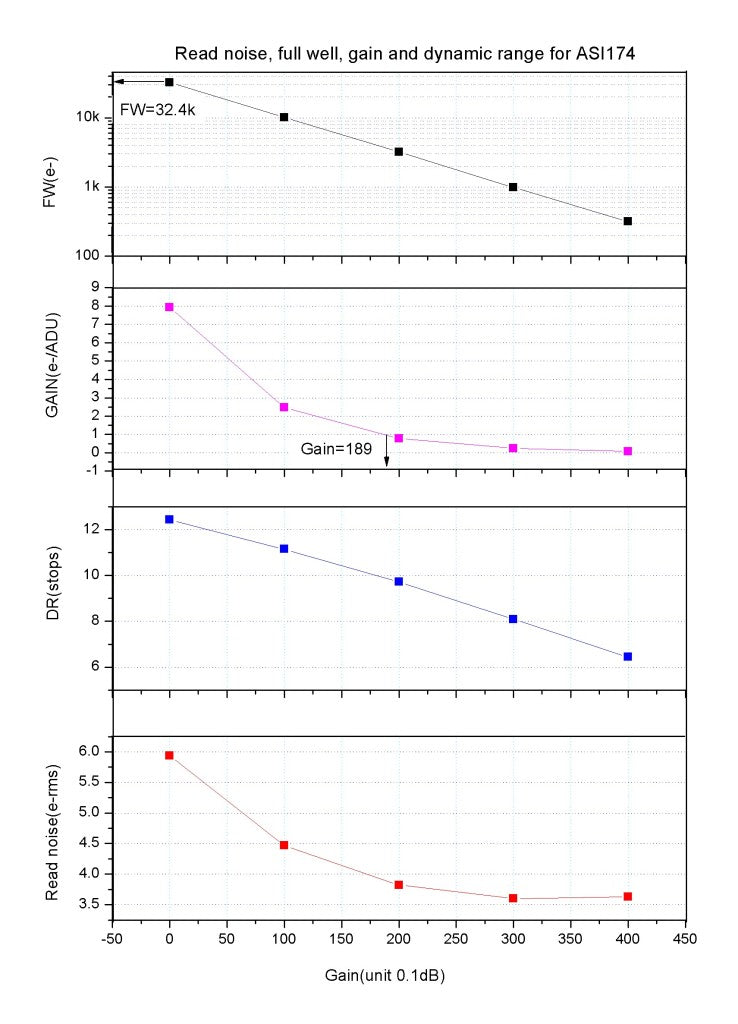

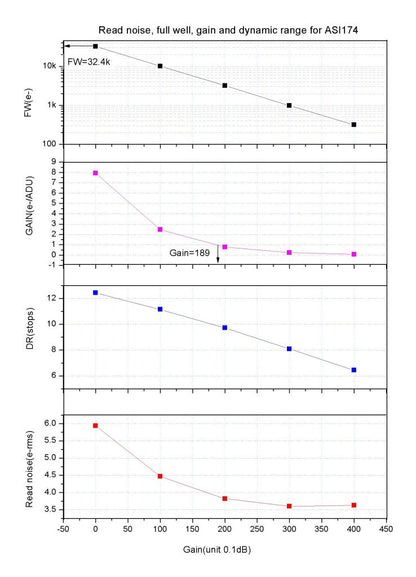

• Reading noise: 3.5 e- (gain at 30dB)
• Interface: USB 3.0 and ST4 autoguiding port
• Lens mounting: M42x0.75 mount or 50.8 mm sinking
• Back focus: 6.5 mm
• Weight: 140 g

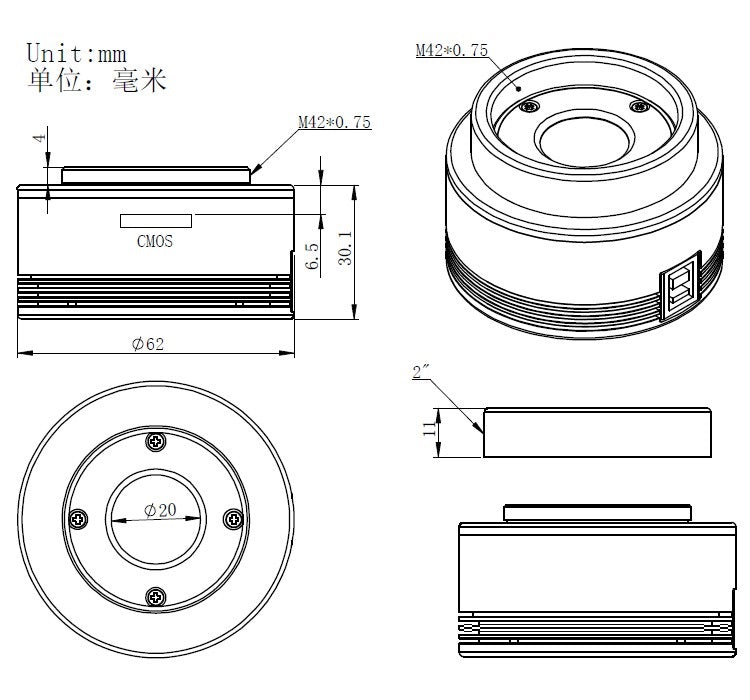

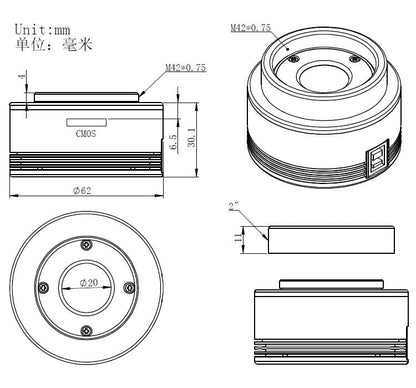

• Dimensions: 62 mm (diameter) x 36 mm (height)

Advantages:

• Monochrome sensor with high sensitivity and low readout noise, ideal for precise imaging of planetary objects and autoguiding.
• High acquisition speed to capture fine details on fast-moving objects.
• Compatibility with many astronomy software (FireCapture, ASIStudio, etc.) and support for ASCOM, Indi and Indigo drivers.
• Versatility in mounting with 50.8mm and M42 sink options for easy integration with different instruments.

Compatibility:

• Compatible with autoguider mounts using the ST4 port or Pulse Guide function via computer.

Tips and tricks:

• Use the supplied mechanical converter to easily adapt the camera to different focusers and accessories.

The ZWO ASI174MM is a versatile and powerful camera for astrophotography, offering optimal performance for planetary imaging and autoguiding with flexibility of use and wide compatibility.
