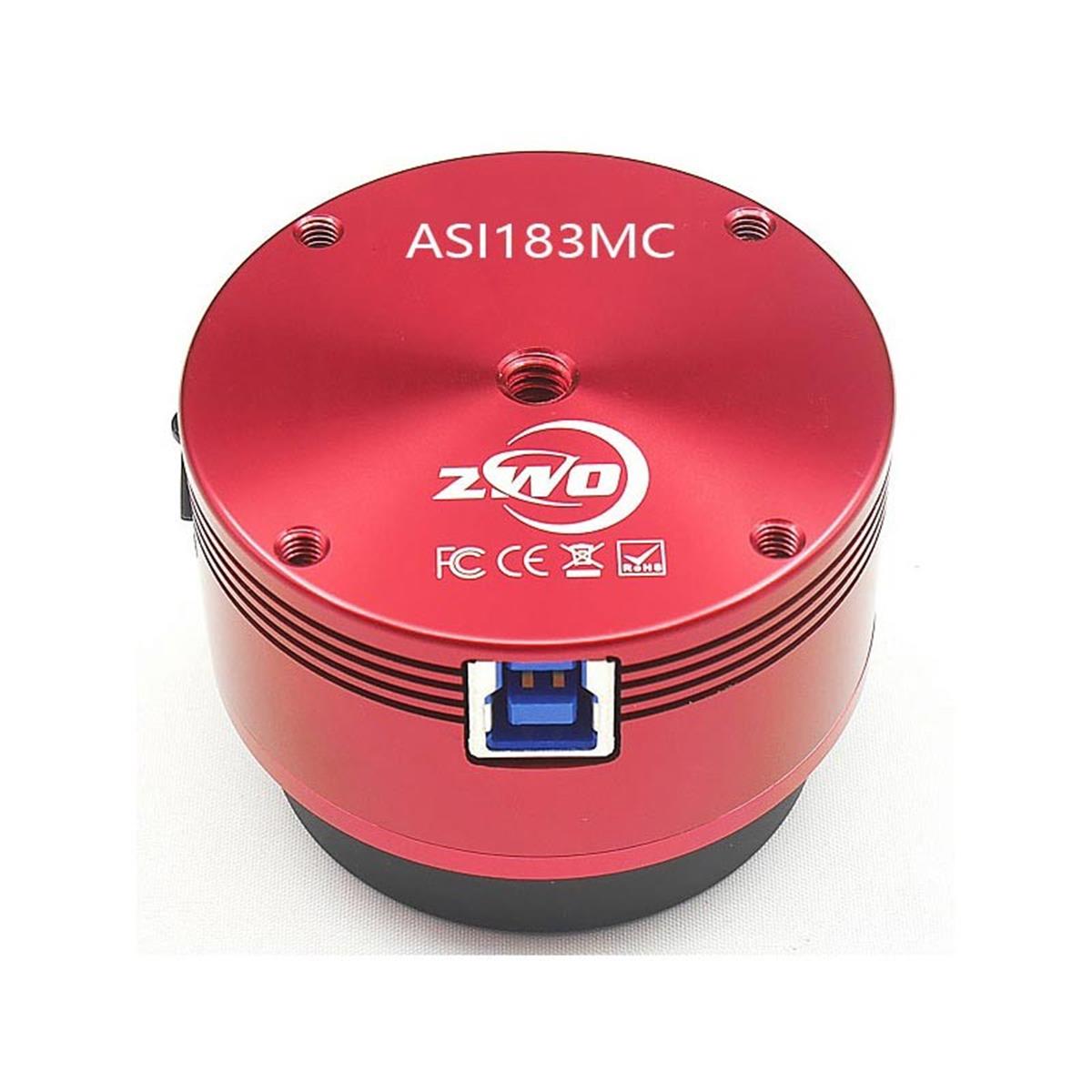

ZWO ASI183MC Color Camera - High Performance for Lunar and Assisted Visual Imaging

The ZWO ASI183MC camera is designed for lunar imaging and visual aids. Equipped with a 20.2 megapixel Sony IMX183 color CMOS sensor, it offers high sensitivity and versatility of use for capturing detailed images of the sky. Its large 1" format sensor and resolution of 5496 x 3672 pixels allow you to explore celestial objects with precision and clarity.

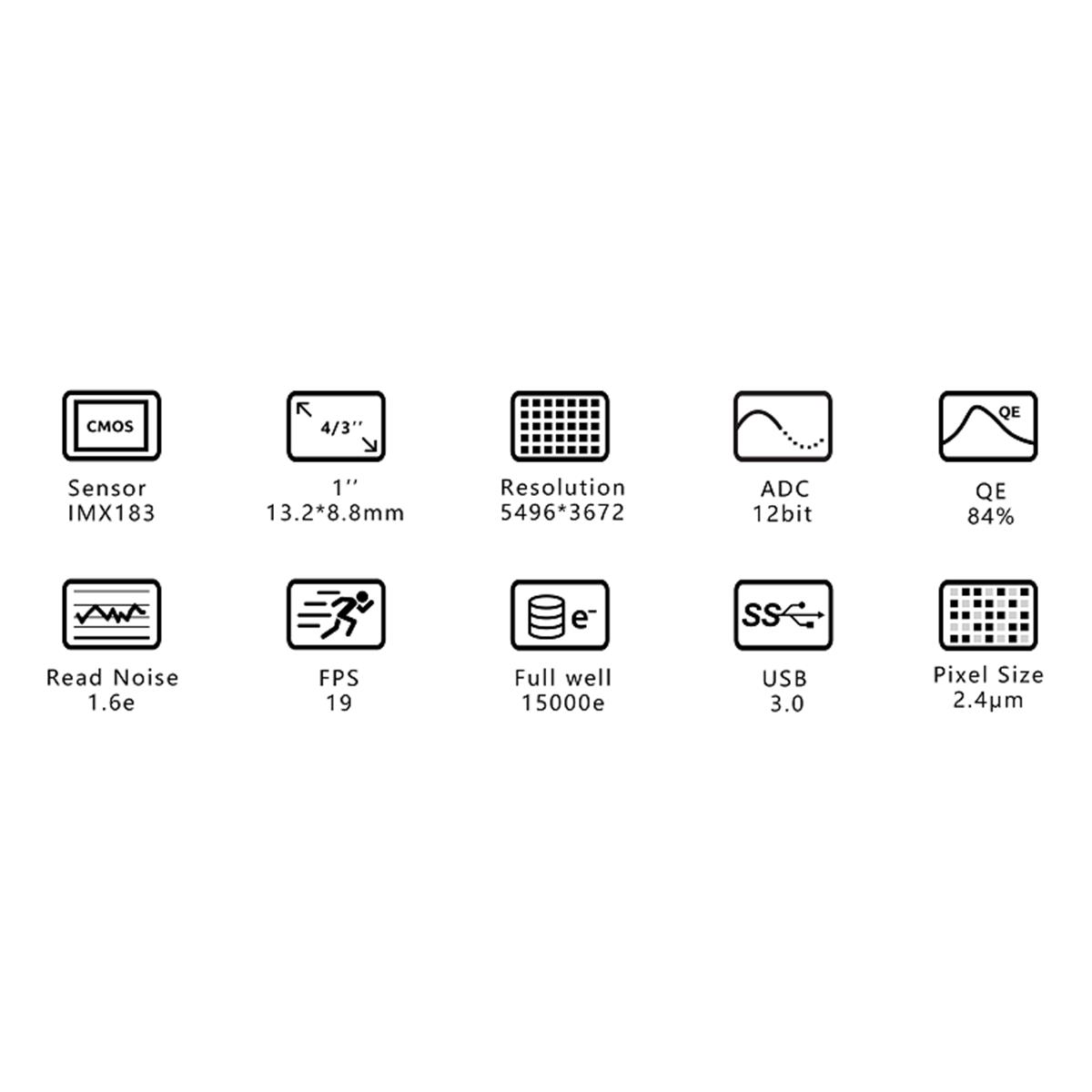

Features:

• Sensor: IMX183 color CMOS
• Sensor size: 1" (5496 x 3672 px)
• Pixel size: 2.4 µm
• Sensor area: 116.24 mm² (13.19 mm x 8.81 mm)
• Full load capacity (FWC): 15,000 e-
• Peak sensitivity (QE peak): 84% with Exmor R technology
• Exposure time range: 32 µs to 2000 s
• Frame rate:
  • 12-bit: up to 19 frames/s at full resolution (5496 x 3672 px)
  • 10-bit: up to 308.2 frames/s at low resolution (320 x 240 px)

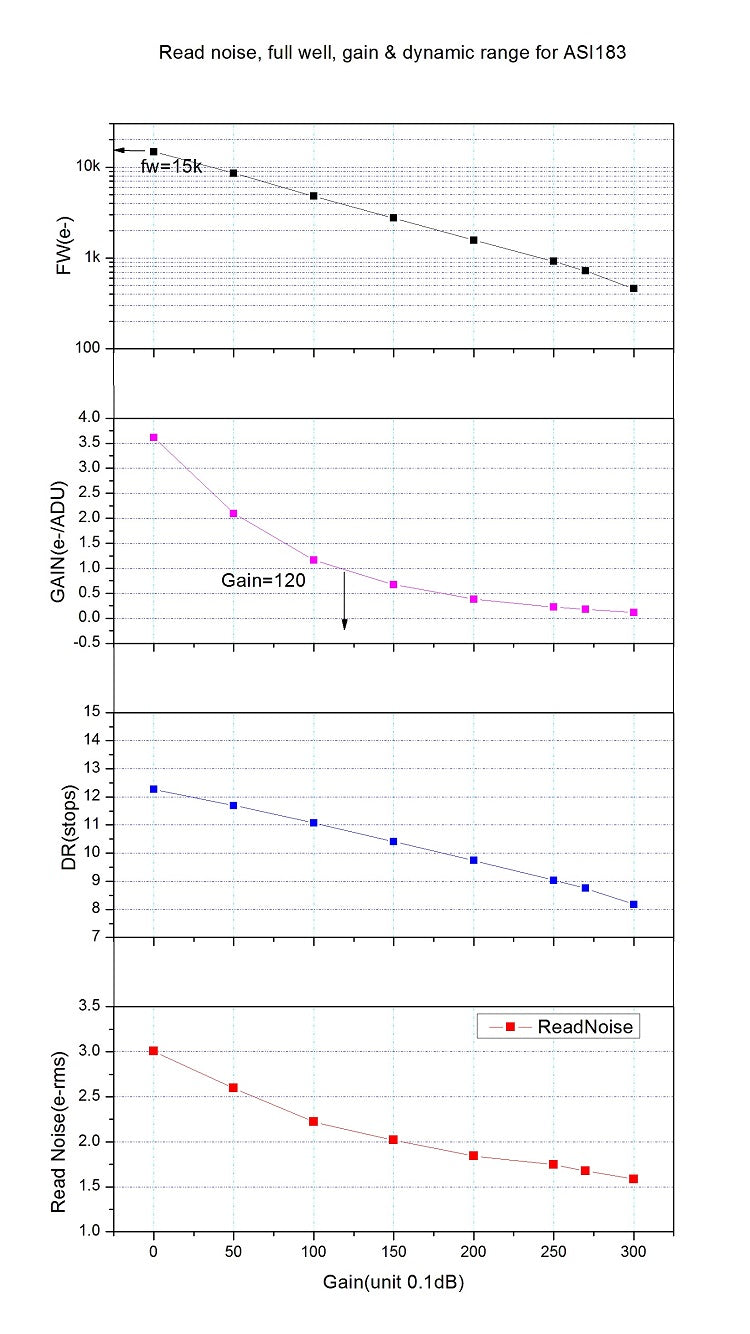

• Reading noise: 1.6 e- (gain @30dB)
• Interface: USB 3.0 and ST4 autoguiding port

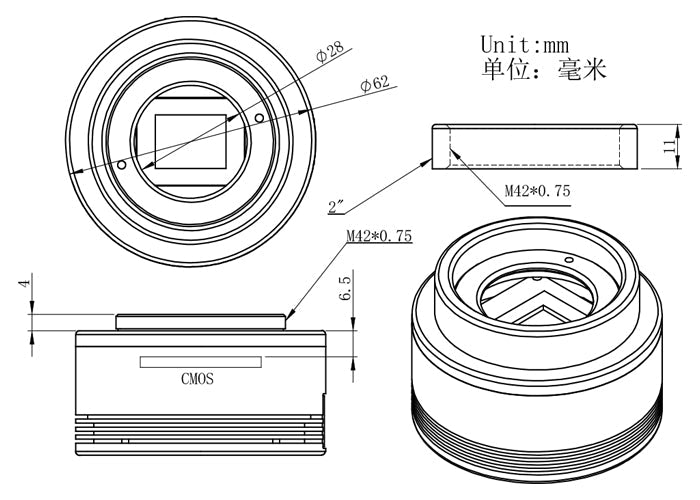

• Lens mounting: 50.8 mm sinking or M42 female thread
• Back focus: 6.5 mm or 17.5 mm with T2 adapter
• Weight: 140 g
• Dimensions: 62 mm (diameter) x 36 mm (height)

Advantages:

• High-sensitivity color sensor with Exmor R back-illuminated technology, perfect for capturing fine details in lunar and solar imagery.
• Wide resolution range and high frame rate for optimal planetary and visual-assisted performance.
• Low readout noise and wide dynamic range for sharp, contrasty images.
• Versatility of use thanks to its lens mount compatible with various 50.8 mm and M42 accessories.

Compatibility:

• Compatible with autoguider mounts using the ST4 port and acquisition software such as FireCapture, ASIStudio, and more.

Tips and tricks:

• Use a Ha filter to maximize the capture of nebulae detail by emitting in the Alpha Hydrogen line.
• Recommended for visual aids, this camera is ideal for exploring the sky in real time on a screen.

The ZWO ASI183MC camera is a perfect choice for amateur and advanced astronomers looking for a high-performance color camera for lunar imaging and visual aids, with great compatibility and ease of use.
