Cooled Color Camera ASI2600MC Duo with Integrated Autoguiding - ZWO

Cooled Color Camera ASI2600MC Duo with Integrated Autoguiding - ZWO

SKU:zwo-zwasi2600mc-duo

Available within 7 days

Regular price €2.439,00 EUR
Regular price Sale price €2.439,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Found it cheaper elsewhere? Contact us!



Capture and guide simultaneously with the ZWO ASI2600MC Duo cooled color camera. This 2-in-1 camera is equipped with a Sony IMX571 APS-C format CMOS color imaging sensor and an integrated monochrome SmartSens SC2210 autoguiding sensor. Ideal for deep-sky imaging, it simplifies your setup while offering exceptional performance.

Features:

    • Type: CMOS Color Sony IMX571
    • Resolution: 26 MP (6248 x 4176 pixels)
    • Pixel Size: 3.76 µm
    • Format: APS-C (23.5 x 15.7 mm)
    • A/D Converter: 16 bits
    • Read Noise: 0.9 to 4.2 e-
    • Cooling: Two-stage thermoelectric cooling up to -35°C below ambient air

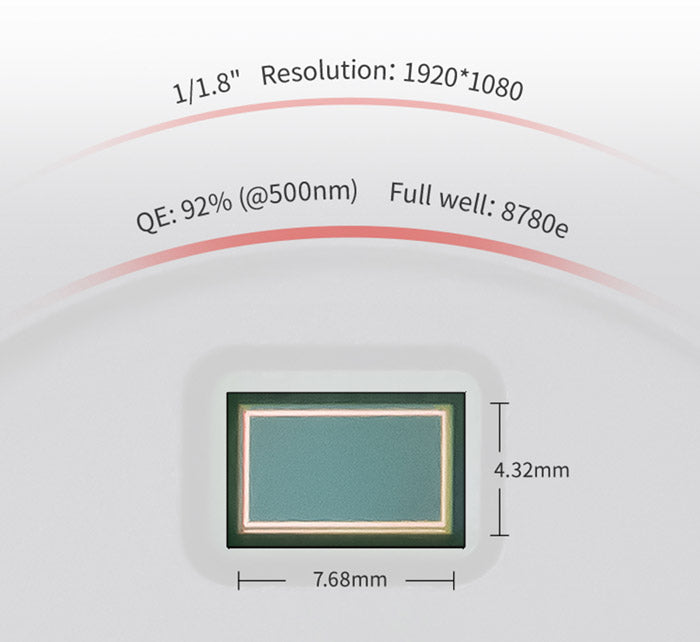

  • Autoguiding Sensor:
    • Type: Monochrome CMOS SmartSens SC2210
    • Resolution: 2 MP (1920 x 1080 pixels)
    • Pixel Size: 4 µm
    • Quantum Efficiency: 92% at 500 nm
    • Read Noise: 0.6 e-
  • Generalities:
    • USB 3.0 interface with DDR3 memory buffer of 256 MB
    • Backfocus: 17.5 mm
    • Weight: 700 g
    • Dimensions: 90 mm x 97 mm
    • Mechanical adaptation: Female M54x0.75 thread (M54 and M48 rings provided)

Advantages:

  • Simplified installation:** One camera for imaging and autoguiding, reducing cabling and weight.
  • High sensitivity:** Back-illuminated CMOS (BSI) technology for detailed images even in low light conditions.
  • Efficient cooling:** Significant reduction of thermal noise for high-quality long exposure shots.
  • No electroluminescence:** Artifact-free images thanks to the sensor's advanced architecture.
  • Extended compatibility:** Works with many telescopes and accessories thanks to provided adapters.

Compatibility:

  • Adaptable with Nikon and Canon photo lenses via optional adapters.
  • Compatible with telescopes equipped with M54x0.75 or M48x0.75 threads.

Tips for use:

  • Use a dedicated 12V power supply (11V to 15V, minimum 3A) for cooling.
  • Make sure the power connector is 5.5 x 2.1 mm with positive pole in the center.

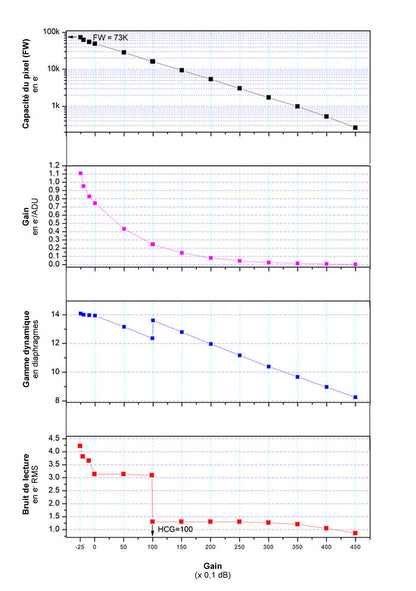

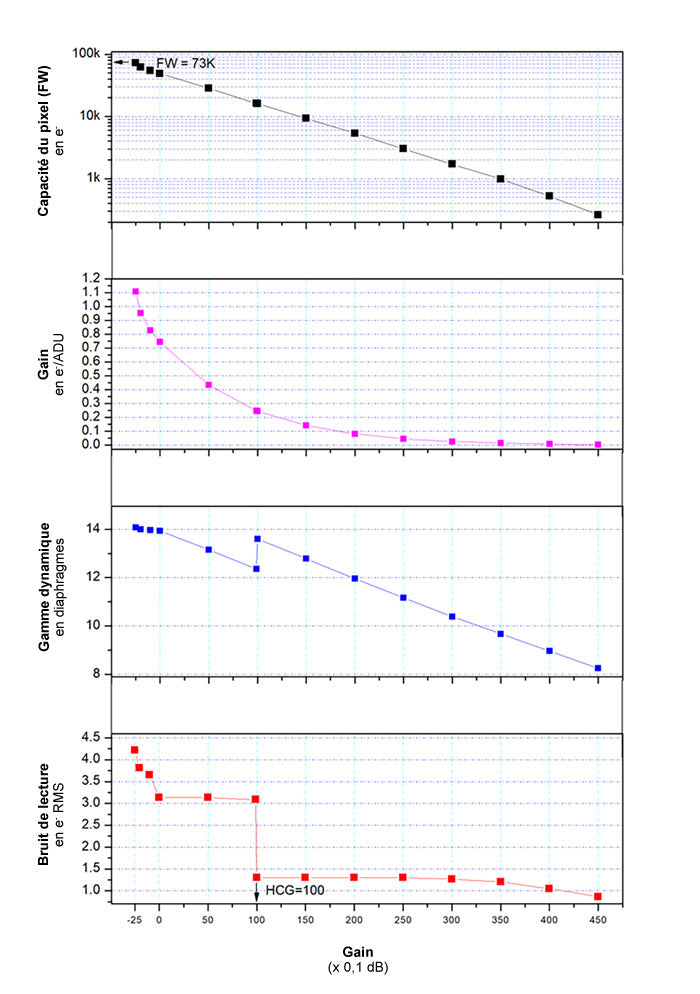

  • Activate HCG mode (High Conversion Gain) by setting gain to 100 to reduce read noise while maintaining a wide dynamic range.

Delivered elements:

  • ZWO ASI2600MC Duo color camera
  • Transport bag
  • USB 3.0 and USB 2.0 cables
  • M54x0.75 rings (16.5 mm and 21 mm)
  • M54 to M48 reduction ring
