zwm54-plate

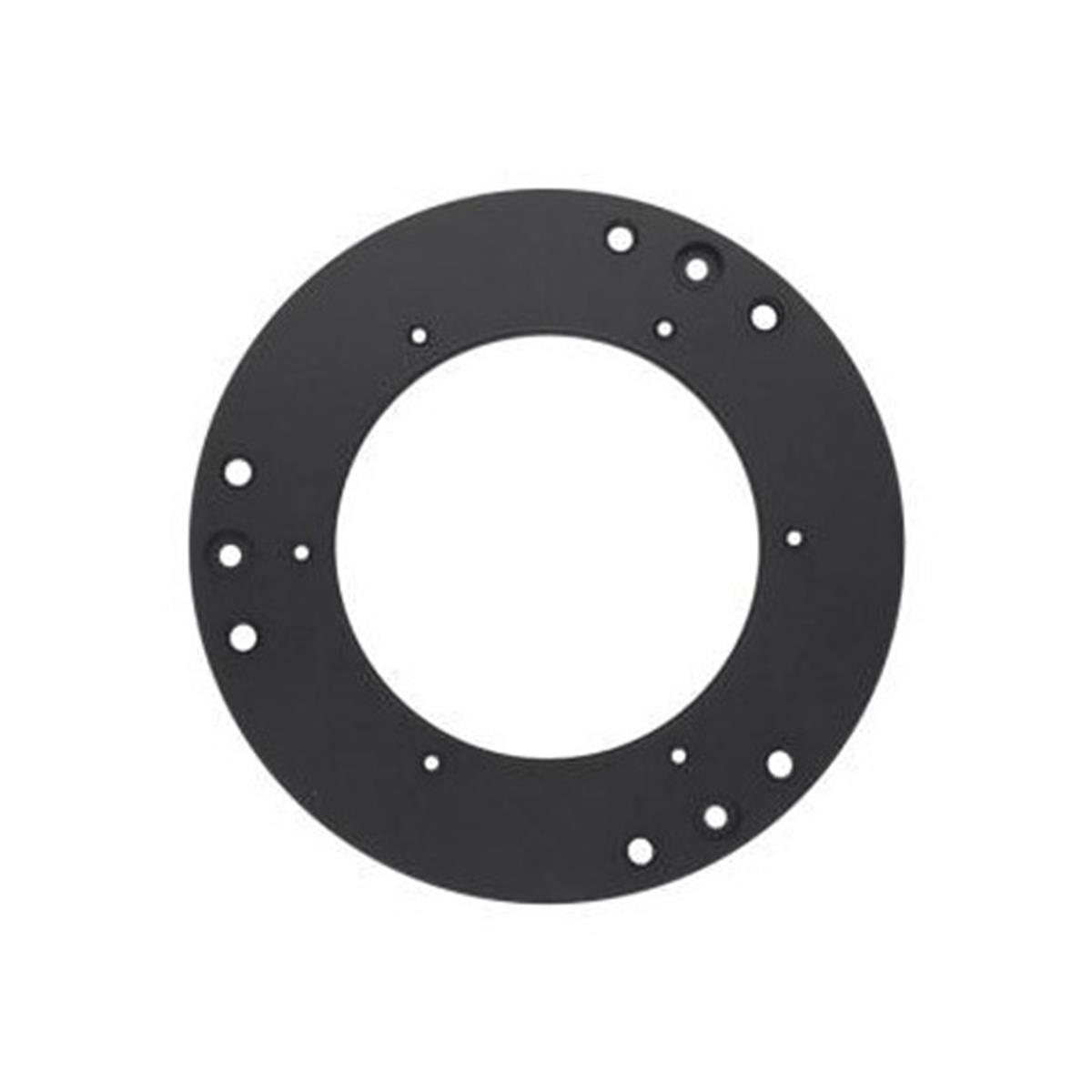

The Tilt M54 ZWO plate is an essential accessory for astrophotographers using large diameter sensors. It allows to correct the orthogonality defect, called tilt, which can cause strongly deformed stars at the edge of the field.

Characteristics

• Solid aluminum construction

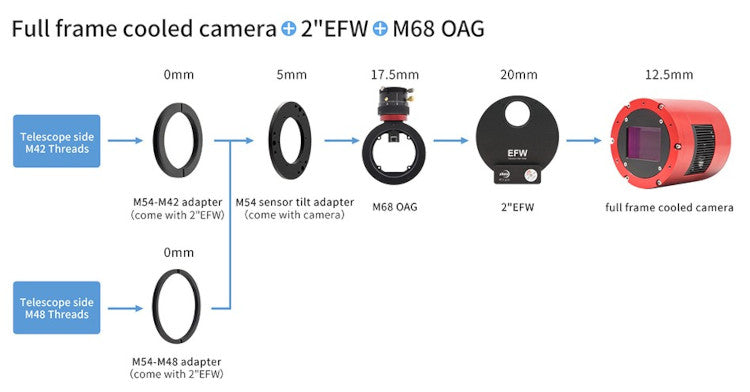

• Generated draw: 5mm (to be taken into account in your total back-focus calculation)

Functionalities

The Tilt M54 ZWO plate is designed to fit on the front face of ZWO ASI2600/6200/2400 cameras or the OAG M68 divider. It has 3 120° screws that allow adjusting the inclination using an Allen key, and 3 screws for fixing.

Advantages

• Corrects orthogonality defect for more accurate images
• Designed for full-format ZWO cameras
